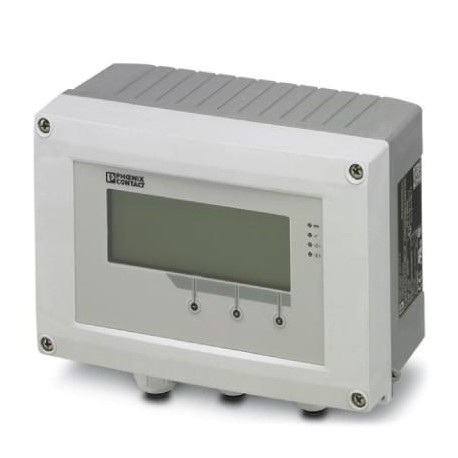

Key Commercial Data
| Orderkey | 2907780 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 181 (C-5-2017) |
| GTIN | 4055626232140 |
| Weight per Piece (excluding packing) | 1,439.100 g |
| Custom tariff number | 90291000 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 50 °C (The readability of the display is no longer guaranteed at temperatures below -30 °C (-22 °F).) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Maximum altitude | < 2000 m (Above sea level) |
| Degree of protection | IP67 |
Input data
| Description of the input | Universal input |
|---|---|
| Number of inputs | 1 |
| Current input signal | 0 mA … 20 mA +10 % |
| 4 mA … 20 mA +10 % | |
| Max. input current | < 150 mA |
| Input signal | Current |
| Input resistance current input | 10 Ω |
| Transmitter supply voltage | > 16 V (22 mA) |
| Transmitter supply voltage range | 22.8 V … 27.6 V (No-load) |
| Transmitter supply current | < 30 mA (Short-circuit and overload protection) |
| Available input sources | Resistance thermometers |
| Sensor types (RTD) that can be used | Pt, Ni, Cu sensors |
| Connection technology | 2, 3, 4-wire |
| Description of the input | Universal input |
| Voltage input signal | 0 V … 10 V |
| 2 V … 10 V | |
| 0 V … 5 V | |
| 0 V … 1 V | |
| 1 V … 5 V | |
| -1 V … 1 V | |
| -10 V … 10 V | |
| -30 V … 30 V | |
| -100 mV … 100 mV | |
| max. input voltage | ± 35 V (≥ 1 V) |
| Input signal | Voltage |
| Input resistance of voltage input | > 1 MΩ |
| Available input sources | Thermocouples |
| Sensor types that can be used (TC) | J, K, T, N, B, S, R, U. L, C, D |
Output data
| Output name | Current output |
|---|---|
| Number of outputs | 1 |
| Configurable/programmable | Yes |
| Current output signal | 0 mA … 20 mA |
| 4 mA … 20 mA | |
| Max. output current | < 22 mA |
| Load/output load current output | ≤ 500 Ω (22 mA) |
| Ripple | < 10 mVPP(500 Ω) |
| D/A resolution | 13 bit |
| Output name | Voltage output |
| Voltage output signal | 0 V … 10 V |
| 2 V … 10 V | |
| 0 V … 5 V | |
| 1 V … 5 V | |
| Max. output voltage | < 11 V |
| Ripple | < 10 mVPP(1000 Ω) |
| D/A resolution | 13 bit |
Switching output
| Output name | Relay output |
|---|---|
| Contact type | 2 PDT |
| Minimum switching voltage | 12 V |
| Maximum switching voltage | 30 V DC (3 A) |
| 230 V AC (3 A) | |
| Min. switching current | 10 mA |
| Output name | Transistor output, active |
| Output description | Open collector output |
| Number of outputs | 1 |
| Contact type | Transistor |
| Maximum switching voltage | 28 V |
| Max. switching current | 3 A |
| 200 mA |
