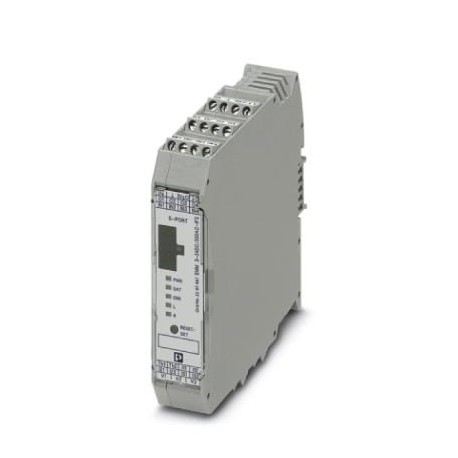

Key Commercial Data
| Orderkey | 2297497 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 14 (C-5-2017) |
| GTIN | 4046356175753 |
| Weight per Piece (excluding packing) | 263.000 g |
| Custom tariff number | 85371098 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
| Width | 22.5 mm |
|---|---|
| Height | 99 mm |
| Depth | 114.5 mm |
| Ambient temperature (operation) | -25 °C … 70 °C |
| Ambient temperature (storage/transport) | -25 °C … 70 °C |
| Degree of protection | IP20 |
Input data
| Input name | Device supply |
|---|---|
| Rated control circuit supply voltage US | 24 V DC |
| Voltage range with reference to US | 0.8 … 1.25 |
| Control supply voltage range | 19.2 V DC … 30 V DC |
| Rated control supply current IS | 25 mA |
| Switching threshold | 9.6 V DC (“0” signal) |
| 19.2 V DC (“1” signal) | |
| Operating voltage display | Green LED |
| Status display | LED yellow right rotation (R), LED yellow left rotation (L), LED green data communication |
| Indication | Red LED |
| Input name | Digital inputs |
| Rated actuating voltage UC | 24 V DC |
| Rated actuating current IC | 3.3 mA |
| Input name | Voltage measuring input V1, V2, V3 |
| Input voltage range | 42 V AC … 575 V AC |
| Typical input current at UN | < 0.5 mA |
| Input name | Current measuring input L1/T1, L2/T2, L3/T3 |
| Typical input current at UN | 5 A (Secondary external converter) |
Output data
| Output name | Load output |
|---|---|
| Mains frequency | 50 Hz … 60 Hz |
| Output name | Acknowledging contacts O1-O4 |
| Note | The meaning of the acknowledgement outputs can be freely parameterized, see user manual |
| Number of outputs | 4 |
| Nominal output voltage | 24 V DC (semiconductor output) |
| Nominal output voltage range (factor) | 0.8 … 1.25 |
| Continuous load current | 500 mA |
| Residual voltage | < 200 mV |
| Protective circuit/component | Suppressor diode |
| Surge voltage protection | > 33 V DC |
Current measurement
| Measuring via | External push-through current transformers connected upstream |
|---|---|
| Basic accuracy | typ. 0.5 % |
