Key Commercial Data
| Orderkey | 2908603 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626311784 |
| Weight per Piece (excluding packing) | 1,115.700 g |
| Custom tariff number | 85371098 |
| Country of origin | DE (Germany) |

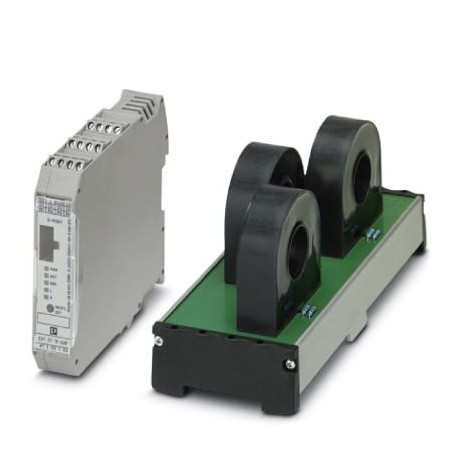

Current transformer dimensions
| Designation | Ext 160 CT |
|---|---|
| Width | 177 mm |
| Height | 75 mm |
| Depth | 88 mm |
| Primary round conductor (diameter) | 23 mm |
Ambient conditions
| Ambient temperature (operation) | -25 °C … 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Degree of protection | IP20 |
Input data
| Input name | Device supply |
|---|---|
| Rated control circuit supply voltage US | 24 V DC |
| Control supply voltage range | 19.2 V DC … 30 V DC |
| Rated control supply current IS | < 33 mA |
| Operating voltage display | Green LED |
| Status display | Yellow LED |
| Indication | Red LED |
| Input name | Digital inputs |
| Rated actuating voltage UC | 24 V DC |
| Rated actuating current IC | 3.3 mA |
| Switching threshold | 9.6 V (“0” signal) |
| 19.2 V (“1” signal) | |
| Input name | Supply for digital outputs |
| Nominal supply voltage | 24 V DC |
Output data
| Output name | Acknowledging contacts O1-O4 |
|---|---|
| Note | The meaning of the acknowledgement outputs can be freely parameterized, see user manual |
| Number of outputs | 4 |
| Nominal output voltage | 24 V DC (semiconductor output) |
| Continuous load current | 500 mA |
| Residual voltage | < 100 mV |
| Protective circuit/component | Suppressor diode |
| Surge voltage protection | > 33 V DC |
