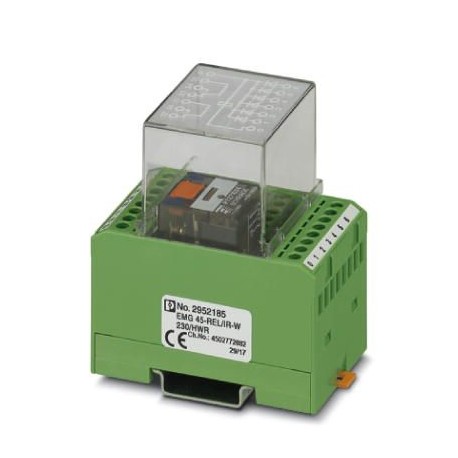

Key Commercial Data
| Orderkey | 2952185 |
|---|---|
| Packing unit | 5 pc |
| Catalog page | Page 117 (IF-2005) |
| GTIN | 4017918084356 |
| Weight per Piece (excluding packing) | 125.660 g |
| Custom tariff number | 85364900 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C … 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C … 70 °C |
Coil side
| Nominal input voltage UN | 230 V AC |
|---|---|
| Input voltage range in reference to UN | 0.9 … 1.1 |
| Mains frequency | 50/60 Hz |
| Typical input current at UN | approx. 16 mA |
| Typical response time | 5 ms … 15 ms |
| Typical release time range | 15 ms … 25 ms |
| Protective circuit | Decoupling diodes Decoupling diodes |
| Capacitor Capacitor | |
| Operating voltage display | LED red |
| Coil resistance | 19.5 kΩ |
| Nominal power consumption | approx. 1 VA |
| Power dissipation for nominal condition | 3.68 W |
Contact side
| Contact type | Single contact, 2-PDT |
|---|---|
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC |
| 110 V DC | |
| Maximum inrush current | 5 A |
| Limiting continuous current | 3 A |
| Interrupting rating (ohmic load) max. | 750 VA |
General
| Type of note | Notes on operation |
|---|---|
| Note | During installation, the system must be connected in phase. |
| Test voltage relay winding/relay contact | 2 kV AC (50 Hz, 1 min.) |
| Mechanical service life | > 107cycles |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
