Key Commercial Data

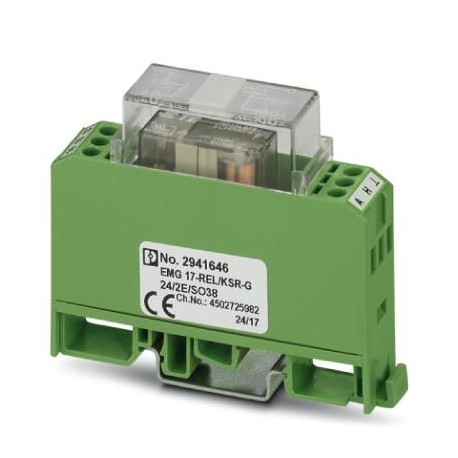

| Orderkey | 2941646 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 447 (C-5-2017) |
| GTIN | 4017918080556 |
| Weight per Piece (excluding packing) | 60.310 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C … 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C … 70 °C |
Coil side
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range in reference to UN | 0.9 … 1.1 |
| Typical input current at UN | 23 mA |
| Typical response time | 9 ms |
| Typical release time | 10 ms |
| Protective circuit | Free-wheeling diode Damping diode |
| Reverse polarity protection Polarity protection diode | |
| Operating voltage display | Automatic: Yellow LED, Manual: Red LED |
| Power dissipation for nominal condition | 0.55 W |
Contact side
| Contact type | Single contact, 1 N/O contact |
|---|---|
| Type of switch contact | Single contact |
| Contact material | AgSnO |
| Maximum switching voltage | 250 V AC/DC |
| Maximum inrush current | 120 A (20 ms) |
| Limiting continuous current | 10 A |
| Interrupting rating (ohmic load) max. | 240 W (at 24 V DC) |
| 120 W (at 48 V DC) | |
| 85 W (at 60 V DC) | |
| 70 W (at 110 V DC) | |
| 90 W (at 220 V DC) | |
| 100 W (for 250 V DC) | |
| 2500 VA (for 250 V AC) | |
| Interrupting rating (lamp load) max. | on request |
