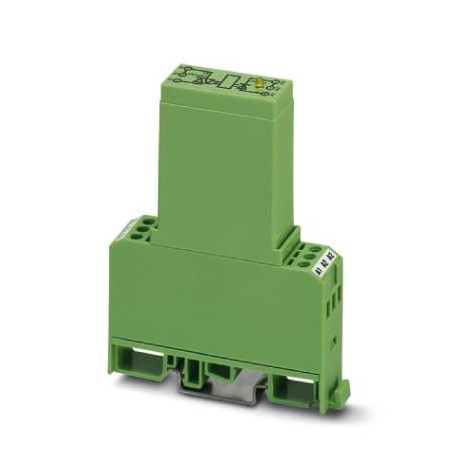

Key Commercial Data
| Orderkey | 2954280 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 141 (IF-2011) |
| GTIN | 4017918084943 |
| Weight per Piece (excluding packing) | 90.000 g |
| Custom tariff number | 85364900 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C … 70 °C |
| Degree of protection | IP20 |
Input data
| Nominal input voltage UN | 230 V AC |
|---|---|
| Input voltage range in reference to UN | 0.8 … 1.2 |
| Input voltage range | 184 V AC … 276 V AC |
| Switching threshold “0” signal in reference to UN | ≤ 0.4 |
| Switching threshold “1” signal in reference to UN | ≥ 0.8 |
| Typical input current at UN | 3 mA |
| Typical response time | 10 ms |
| Typical turn-off time | 10 ms |
| Operating voltage display | Yellow LED |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Protective circuit/component | Polarity protection diode |
| Varistor | |
| Transmission frequency | 10 Hz |
Output data
| Output nominal voltage | 240 V AC |
|---|---|
| Output voltage range | 48 V AC … 280 V AC (50 Hz … 60 Hz) |
| Limiting continuous current | 3 A (see derating curve) |
| Min. load current | 50 mA |
| Leakage current | 4 mA (in off state) |
| Surge current | 160 A (t = 10 ms) |
| Max. load value | 128 A2s (I2x t where t = 10 ms) |
| Peak offstate voltage | 600 V (Periodic peak reverse voltage) |
| Voltage drop at max. limiting continuous current | ≤ 1 V |
| Output circuit | 2-wire, floating |
| Type of protection | RC element |
| Surge protection | |
| Protective circuit/component | RC element |
| Varistor |
Connection data, input side
| Connection name | Input side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² … 4 mm² |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section AWG | 24 … 12 |
