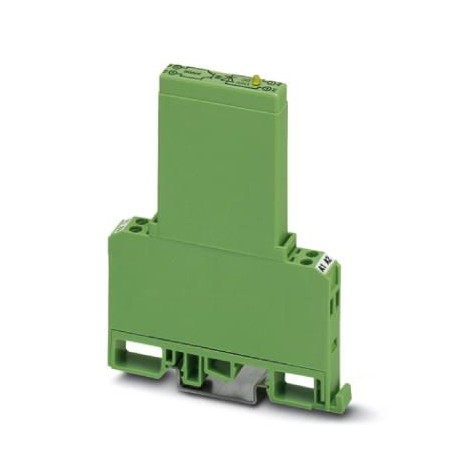

Key Commercial Data
| Orderkey | 2944245 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 138 (IF-2011) |
| GTIN | 4017918081546 |
| Weight per Piece (excluding packing) | 40.530 g |
| Custom tariff number | 85364900 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C … 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C … 70 °C |
| Degree of protection | IP20 |
Input data
| Nominal input voltage UN | 110 V DC |
|---|---|
| Input voltage range in reference to UN | 0.9 … 1.1 |
| Input voltage range | 99 V DC … 121 V DC |
| Switching threshold “0” signal in reference to UN | ≤ 0.23 |
| Switching threshold “1” signal in reference to UN | ≥ 0.9 |
| Typical input current at UN | 4 mA |
| Typical response time | 0.1 ms |
| Typical turn-off time | 0.2 ms |
| Status display | Yellow LED |
| Type of protection | Reverse polarity protection |
| Protective circuit/component | Polarity protection diode |
| Transmission frequency | 500 Hz |
Output data
| Output nominal voltage | 24 V DC |
|---|---|
| Output voltage range | 5 V DC … 36 V DC |
| Limiting continuous current | 1 A (see derating curve) |
| Surge current | 2 A (t = 1 s) |
| Peak offstate voltage | 45 V DC (Collector-emitter reverse voltage) |
| Voltage drop at max. limiting continuous current | ≤ 1 V |
| Output circuit | 2-wire, floating |
| Type of protection | Reverse polarity protection |
| Protective circuit/component | Polarity protection diode |
Connection data, input side
| Connection name | Input side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² … 4 mm² |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section AWG | 24 … 12 |
