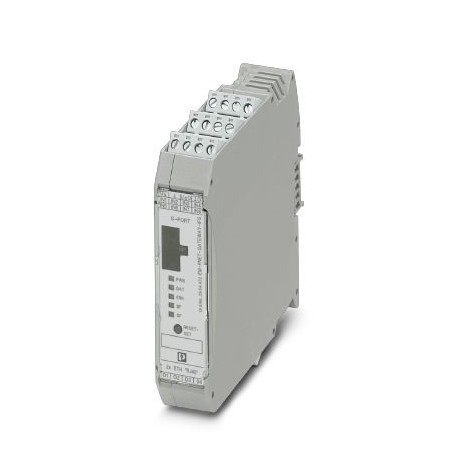

Key Commercial Data
| Orderkey | 2904472 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 16 (C-5-2017) |
| GTIN | 4046356826471 |
| Weight per Piece (excluding packing) | 146.610 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Device supply
| Rated control circuit supply voltage US | 24 V DC -20 % … +25 % |
|---|---|
| Rated control supply current IS | 85 mA (plus load current of the outputs) |
| Protective circuit | Reverse polarity protection |
| Surge protection |
Digital inputs
| Number | 8 |
|---|---|
| Rated actuating voltage UC | 24 V DC ±20 % |
| Rated actuating current IC | 3 mA |
| Protective circuit | Reverse polarity protection |
Digital outputs
| Designation | Switching outputs |
|---|---|
| Number | 4 |
| Note on protection circuit | Fusing with max. 8 A F-fuse |
| Residual voltage | 1 V |
| Maximum switching voltage | 23 V DC (UB– Uresid.of the output) |
| Max. switching current | 500 mA (per output) |
| Protective circuit | Parallel protection against polarity reversal, pay attention to the fuse |
Connection data supply
| Connection name | Supply |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² … 2 mm² |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section AWG | 12 … 24 |
Service interface
| Connection name | Programming connection |
|---|---|
| Connection method | S-PORT (socket) |
| Number of connections | 1 |
| Number of positions | 12 |
