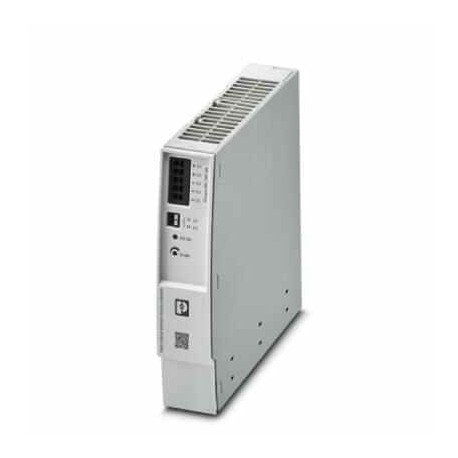

Primary-switched power supply unit, TRIO POWER, Snap-on connection, Cross Power System – installation, input: 3-phase, output: 24 V DC / 5 A
Liên hệ:
Key Commercial Data
| Orderkey | 1064922 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 262 (C-4-2019) |
| GTIN | 4055626725222 |
| Custom tariff number | 85044030 |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C … 70 °C (> 60 °C Derating: 2.5 %/K) |
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Climatic class | 3K3 (in acc. with EN 60721) |
| Degree of pollution | 2 |
| Installation height | ≤ 4000 m (> 2000 m, Derating: 10 %/1000 m) |
Input data
| Nominal input voltage range | 3x 400 V AC … 500 V AC |
|---|---|
| 2x 400 V AC … 500 V AC | |
| Input voltage range | 3x 400 V AC … 500 V AC -20 % ….+15 % |
| 2x 400 V AC … 500 V AC -10 % … +15 % | |
| AC frequency range | 50 Hz … 60 Hz |
| Discharge current to PE | < 0.25 mA |
| Current consumption | 3x 0.4 A (400 V AC) |
| 3x 0.3 A (500 V AC) | |
| 2x 0.6 A (400 V AC) | |
| 2x 0.5 A (500 V AC) | |
| Nominal power consumption | 243.6 VA |
| Inrush current | ≤ 22 A (typical) |
| Mains buffering time | typ. 20 ms (400 V AC) |
| typ. 20 ms (500 V AC) | |
| Input fuse | 3.15 A (internal (device protection), slow-blow) |
| Recommended breaker for input protection | 6 A … 16 A (AC: Characteristics B, C, D, K) |
| Power factor (cos phi) | 0.55 |
| Type of protection | Transient surge protection |
| Protective circuit/component | Varistor |
Output data
| Nominal output voltage | 24 V DC ±1 % |
|---|---|
| Setting range of the output voltage (USet) | 24 V DC … 28 V DC (> 24 V DC, constant capacity restricted) |
| Nominal output current (IN) | 5 A |
| Dynamic Boost (IDyn.Boost) | 7.5 A (5 s) |
| Derating | > 60 °C … 70 °C (2.5%/K) |
| Connection in parallel | Yes, for redundancy and increased capacity |
| Connection in series | yes |
| Protection against overvoltage at the output (OVP) | ≤ 30 V DC |
| Control deviation | < 1 % (change in load, static 10 % … 90 %) |
| < 3 % (Dynamic load change 10 % … 90 %, 10 Hz) | |
| < 0.1 % (change in input voltage ±10 %) | |
| Residual ripple | ≤ 20 mVPP |
| Output power | 120 W |
| Typical response time | < 1 s |
| Maximum power dissipation in no-load condition | < 1 W (400 V AC) |
| Power loss nominal load max. | < 12 W (480 V AC) |
General
| Net weight | 0.7 kg |
|---|---|
| Efficiency | typ. 91 % (400 V AC) |
| Insulation voltage input/output | 3 kV AC (type test) |
| 1.5 kV AC (routine test) | |
| Protection class | II (in closed control cabinet) |
| Degree of protection | IP20 |
| MTBF (IEC 61709, SN 29500) | > 2300000 h (25 °C) |
| > 1300000 h (40 °C) | |
| > 620000 h (60 °C) | |
| Assembly instructions | Cross Power System |
Connection data, output
| Connection method | Push-in connection |
|---|---|
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 4 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Stripping length | 10 mm |
Connection data for signaling
| Connection method | Push-in connection |
|---|---|
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 16 |
| Stripping length | 8 mm |
Standards
| EMC requirements for noise immunity | EN 61000-6-2 |
|---|---|
| Standard – Safety of transformers | EN 61558-2-16 (air clearances and creepage distances only) |
| Standard – Electrical safety | IEC 61010-1 (SELV) |
| Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) |
| Standard – Safety extra-low voltage | IEC 61010 (SELV) / (PELV) |
| Standard – Safe isolation | DIN VDE 0100-410 |
| Standard – Limitation of mains harmonic currents | EN 61000-3-2 |
EMC data
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
|---|---|
| Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
| Conducted noise emission | EN 55016 |
| EN 61000-6-4 (Class A) | |
| Noise emission | EN 55016 |
| EN 61000-6-4 (Class A) | |
| Electrostatic discharge | EN 61000-4-2 |
| Contact discharge | 6 kV (Test Level 4) |
| Discharge in air | 8 kV (Test Level 4) |
| Electromagnetic HF field | EN 61000-4-3 |
| Frequency range | 80 MHz … 1 GHz |
| Test field strength | 10 V/m (Test Level 3) |
| Frequency range | 1 GHz … 2 GHz |
| Test field strength | 10 V/m (Test Level 3) |
| Frequency range | 2 GHz … 3 GHz |
| Test field strength | 10 V/m (Test Level 3) |
| Comments | Criterion A |
| Fast transients (burst) | EN 61000-4-4 |
| Input | 4 kV (Test Level 4 – asymmetrical) |
| Output | 2 kV (Test Level 3 – asymmetrical) |
| Signal | 1 kV (Test Level 2 – asymmetrical) |
| Comments | Criterion A |
| Input | 3 kV (Test Level 3 – symmetrical) |
| 6 kV (Test Level 4 – asymmetrical) | |
| Output | 1 kV (Test Level 2 – symmetrical) |
| 2 kV (Test Level 1 – asymmetrical) | |
| Signal | 1 kV (Test Level 1 – symmetrical) |
| Comments | Criterion B |
| Voltage dips | EN 61000-4-11 |
| Voltage | 230 V AC |
| Frequency | 50 Hz |
| Voltage dip | 70 % |
| Number of periods | 25 periods |
| Additional text | Test Level 2 |
| Comments | Criterion A |
| Voltage dip | 40 % |
| Number of periods | 10 periods |
| Additional text | Test Level 2 |
| Comments | Criterion A |
| Voltage dip | 0 % |
| Number of periods | 1 period |
| Additional text | Test Level 2 |
| Comments | Criterion A |
| Criterion A | Normal operating behavior within the specified limits. |
| Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Classifications
[email protected]
| [email protected] 6.0 | 27049000 |
|---|---|
| [email protected] 7.0 | 27049002 |
| [email protected] 8.0 | 27049002 |
| [email protected] 9.0 | 27040701 |
