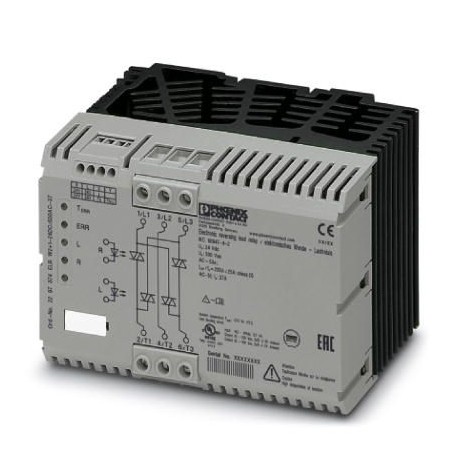

Key Commercial Data
| Orderkey | 2297374 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 41 (C-5-2017) |
| GTIN | 4046356175739 |
| Weight per Piece (excluding packing) | 1,791.000 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
| Width | 147.5 mm |
|---|---|
| Height | 99 mm |
| Depth | 114.5 mm |
| Ambient temperature (operation) | -25 °C … 70 °C |
| Ambient temperature (storage/transport) | -25 °C … 70 °C |
| Degree of protection | IP20 |
Input data
| Input name | Control input right/left |
|---|---|
| Rated actuating voltage UC | 24 V DC |
| Triggering voltage range | 19.2 V DC … 30 V DC |
| Voltage range with reference to UC | 0.8 … 1.25 |
| Rated actuating current IC | 12.7 mA |
| Switching threshold | 9.6 V (“0” signal) |
| 19.2 V (“1” signal) | |
| Protective circuit | Reverse polarity protection Suppressor diode |
| Surge protection | |
| Status display | Yellow LED |
| Indication | Red LED |
Output data load output
| Output name | AC output |
|---|---|
| Rated operating voltage Ue | 500 V AC |
| Operating voltage range | 48 V AC … 575 V AC |
| Load current range | 200 mA … 37 A (see to derating) |
| Rated operating current at AC-51 | 37 A |
| Rated operating current at AC-53a | 25 A |
| Leakage current | 6 mA |
| Residual voltage | < 1.5 V |
| Surge current | 1300 A (t = 10 ms) |
| Type of protection | RCV circuit |
General
| Test voltage input/output | 5 kVrms |
|---|---|
| Switching frequency | max. 5 Hz |
| Mounting position | Vertical (horizontal DIN rail) |
| Assembly instructions | Can be aligned with spacing = 40 mm |
| Operating mode | 100% operating factor |
| Reversing frequency | ≤ 10 Hz |
| Connection name | Control circuits |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² … 4 mm² |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section AWG | 24 … 12 |
| Connection name | Load circuit |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M4 |
| Conductor cross section solid | 0.5 mm² … 16 mm² |
| Conductor cross section flexible | 0.5 mm² … 16 mm² |
| Conductor cross section AWG | 20 … 6 |
