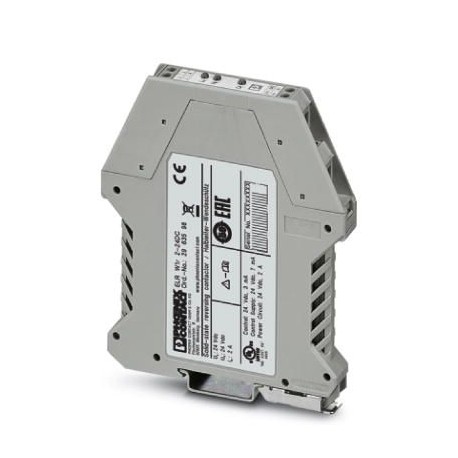

Key Commercial Data
| Orderkey | 2963598 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 46 (C-5-2017) |
| GTIN | 4017918943592 |
| Weight per Piece (excluding packing) | 107.000 g |
| Custom tariff number | 85371098 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C … 80 °C |
| Degree of protection | IP20 |
Input data
| Input name | Device supply |
|---|---|
| Nominal supply voltage | 24 V DC ±20 % |
| Rated control circuit supply voltage US | 24 V DC |
| Control supply voltage range | 10 V DC … 30 V DC |
| Rated control supply current IS | 7 mA |
| Protective circuit | Surge protection |
| Operating voltage display | Green LED |
| Status display | LED yellow, forward running (R), LED yellow, reverse running (L) |
| Input name | Control input right/left |
| Nominal input voltage UN | 24 V DC |
| Input voltage range in reference to UN | 0.8 … 1.2 |
| Input voltage range | 19.2 V DC … 28.8 V DC |
| Typical input current at UN | 3 mA |
| Rated actuating voltage UC | 24 V DC |
| Triggering voltage range | 19.2 V DC … 28.8 V DC |
| Rated actuating current IC | 3 mA |
| Protective circuit | Reverse polarity protection |
| Surge protection | |
| Surge voltage protection | > 33 V DC |
| Typical response time | 200 µs |
| Status display | LED yellow, forward running (R), LED yellow, reverse running (L) |
| Current consumption | 3 mA |
| Switchover time RL/LL(turn-on time) | 80 ms |
Output data load output
| Output name | DC output |
|---|---|
| Rated operating voltage Ue | 24 V DC |
| Operating voltage range | 10 V DC … 30 V DC |
| Type of protection | Reverse polarity protection |
| Surge protection |
