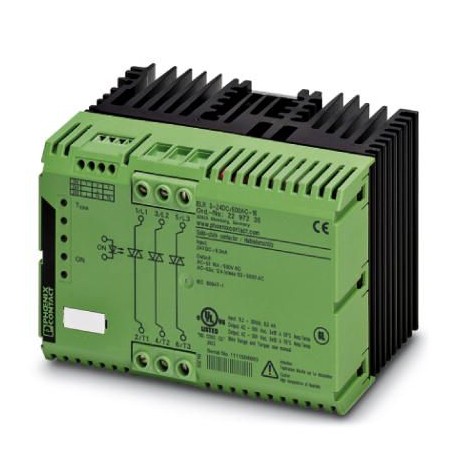

ELR 3- 24DC/500AC-16 2297235 PHOENIX CONTACT Solid-state contactor

ELR 3- 24DC/500AC-16 2297235 PHOENIX CONTACT Solid-state contactor

ELR 3- 24DC/500AC-16 2297235 PHOENIX CONTACT Solid-state contactor

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 2297235 Danh mục: INTERFACE Components (IF) Thẻ: 2297235, ELR 3- 24DC/500AC-16, PHOENIX_CONTACT

Mô tả

Key Commercial Data

Orderkey	2297235
Packing unit	1 pc
Note	Made to Order (non-returnable)
Catalog page	Page 43 (C-5-2017)
GTIN	4046356175593
Weight per Piece (excluding packing)	1,801.700 g
Custom tariff number	85364900
Country of origin	DE (Germany)

Input data

Input name	Control input right/left
Rated actuating voltage U_C	24 V DC
Triggering voltage range	19.2 V DC … 30 V DC
Voltage range with reference to U_C	0.8 … 1.25
Rated actuating current I_C	8.3 mA
Switching threshold	9.6 V (“0” signal)
	19.2 V (“1” signal)
Protective circuit	Reverse polarity protection Suppressor diode
	Surge protection
Status display	Yellow LED
Indication	Red LED

Output data load output

Output name	AC output
Rated operating voltage U_e	500 V AC
Operating voltage range	48 V AC … 575 V AC
Load current range	100 mA … 16 A (see to derating)
Rated operating current at AC-51	16 A
Rated operating current at AC-53a	12 A
Leakage current	6 mA
Residual voltage	< 1.5 V
Surge current	300 A (t = 10 ms)
Type of protection	RCV circuit

Connection data, control circuit

Connection name	Control circuits
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section solid	0.2 mm² … 4 mm²
Conductor cross section flexible	0.2 mm² … 2.5 mm²
Conductor cross section AWG	24 … 12

Connection data load circuit

Connection name	Load circuit
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M4
Conductor cross section solid	0.5 mm² … 16 mm²
Conductor cross section flexible	0.5 mm² … 16 mm²
Conductor cross section AWG	20 … 6

General

Test voltage input/output	5 kV_rms
Switching frequency	≤ 10 Hz
Mounting position	Vertical (horizontal DIN rail)
Assembly instructions	Can be aligned with spacing = 40 mm
Operating mode	100% operating factor
