ELR 1-SC-230AC/600AC-50 1032927 PHOENIX CONTACT Single-phase solid-state contactor, input voltage: 230 V AC,..

ELR 1-SC-230AC/600AC-50 1032927 PHOENIX CONTACT Single-phase solid-state contactor, input voltage: 230 V AC,..

ELR 1-SC-230AC/600AC-50 1032927 PHOENIX CONTACT Single-phase solid-state contactor, input voltage: 230 V AC,..

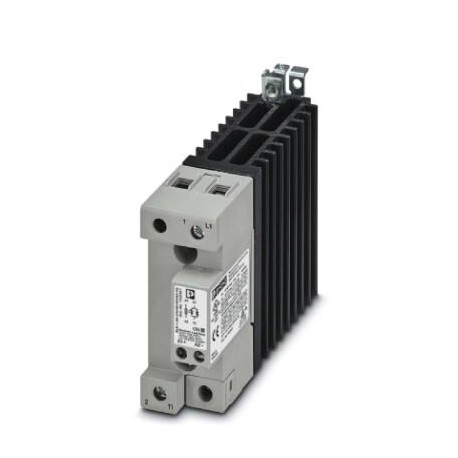

Single-phase solid-state contactor, input voltage: 230 V AC, output current: 50 A, zero voltage switch

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 1032927 Danh mục: INTERFACE Components (IF) Thẻ: 1032927, ELR 1-SC-230AC/600AC-50, PHOENIX_CONTACT

Mô tả

Key Commercial Data

Orderkey	1032927
Packing unit	1 pc
Catalog page	Page 49 (C-5-2019)
GTIN	4055626538105
Weight per Piece (excluding packing)	520.000 g
Custom tariff number	85362010
Country of origin	MT (Malta)

Drawings
Ambient conditions
Output data load output
Connection data
Standards and Regulations

Dimensions
Input data
General
Connection data 2
Classifications

Drawings


Block diagram

Dimensions

Width	35 mm
Height	110 mm
Depth	141 mm

Ambient conditions

Ambient temperature (operation)	-30 °C … 70 °C
Ambient temperature (storage/transport)	-40 °C … 80 °C

Input data

Input name	Control input
Rated actuating voltage U_C	230 V AC
Triggering voltage range	24 V AC … 275 V AC
	24 V DC … 190 V DC
Rated actuating current I_C	approx. 17 mA
Switching threshold	≤ 5 V AC/DC (“0” signal)
	≥ 20 V AC/DC (“1” signal)
Transmission frequency	6 Hz
Operating voltage display	Green LED

Output data load output

Output name	Load output
Operating voltage range	42 V AC … 660 V AC
Load current range	500 mA … 50 A (see to derating)
Rated operating current at AC-51	50 A
Rated operating current at AC-53a	30 A (T_A= 25 °C)
	16 A (T_A= 40 °C)
Leakage current	< 3 mA (In off state)
Residual voltage	< 1 V
Surge current	1900 A (t = 10 ms)
Type of protection	Varistor

General

Mounting position	Vertical (horizontal DIN rail)
Assembly instructions	Can be aligned with ≥ 22.5 mm spacing

Connection data

Connection name	Control circuits
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section solid	0.5 mm² … 2.5 mm²
Conductor cross section flexible	0.5 mm² … 2.5 mm²
Conductor cross section AWG	18 … 12

Connection data 2

Connection name	Load circuit
Connection method	Screw connection
Stripping length	12 mm
Screw thread	M4
Conductor cross section solid	2.5 mm² … 6 mm²
Conductor cross section flexible	1 mm² … 4 mm²
Conductor cross section AWG	14 … 10

Standards and Regulations

Designation	Standards/regulations
Standards/regulations	EN 61000-4-2
	EN 61000-4-3
	EN 61000-4-4
	EN 61000-4-5
	EN 55011

Classifications

[email protected]

[email protected] 6.0	27371000
[email protected] 7.0	27371014
[email protected] 8.0	27371014
[email protected] 9.0	27371014

ETIM

ETIM 5.0	EC002055
ETIM 6.0	EC002055
ETIM 7.0	EC002055

Drawings
Ambient conditions
Output data load output
Connection data
Standards and Regulations

Dimensions
Input data
General
Connection data 2
Classifications

Drawings


Block diagram

Ambient conditions

Ambient temperature (operation)	-30 °C … 70 °C
Ambient temperature (storage/transport)	-40 °C … 80 °C

(+84) 908 556 822

(+84) 938 388 289
