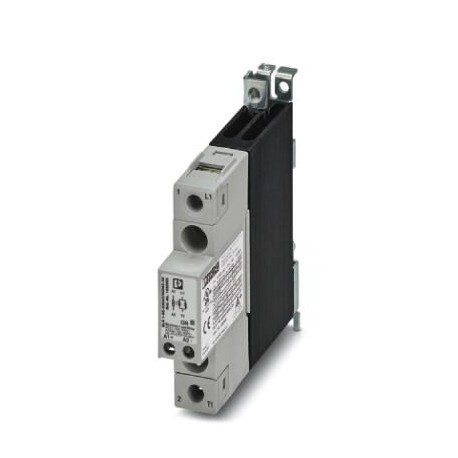

Single-phase solid-state contactor, input voltage: 230 V AC, output current: 30 A, zero voltage switch
