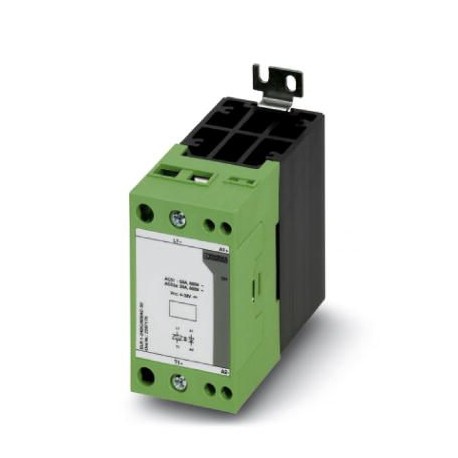

Key Commercial Data
| Orderkey | 2297170 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 49 (C-5-2017) |
| GTIN | 4046356132046 |
| Weight per Piece (excluding packing) | 413.800 g |
| Custom tariff number | 85362010 |
| Country of origin | MT (Malta) |
| Width | 45 mm |
|---|---|
| Height | 103 mm |
| Depth | 103 mm |
| Ambient temperature (operation) | -30 °C … 70 °C |
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
Input data
| Input name | Control input |
|---|---|
| Rated actuating voltage UC | 24 V DC |
| Triggering voltage range | 4 V DC … 32 V DC |
| Rated actuating current IC | approx. 12 mA |
| Switching threshold | ≤ 1 V DC (“0” signal) |
| ≥ 4 V DC (“1” signal) | |
| Transmission frequency | 25 Hz |
| Operating voltage display | Green LED |
Output data load output
| Output name | Load output |
|---|---|
| Operating voltage range | 42 V AC … 660 V AC |
| Load current range | 150 mA … 50 A (see to derating) |
| Rated operating current at AC-51 | 50 A |
| Rated operating current at AC-53a | 30 A |
| Leakage current | < 3 mA (In off state) |
| Residual voltage | < 1.6 V |
| Surge current | 1900 A (t = 10 ms) |
| Type of protection | RCV circuit |
General
| Test voltage input/output | 4 kVrms |
|---|---|
| Mounting position | Vertical (horizontal DIN rail) |
| Assembly instructions | Can be aligned with ≥ 22.5 mm spacing |
| Connection name | Control circuits |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.5 mm² … 4 mm² |
| Conductor cross section flexible | 0.5 mm² … 4 mm² |
| Conductor cross section AWG | 20 … 14 |
| Connection name | Load circuit |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M5 |
| Conductor cross section solid | 4 mm² … 25 mm² |
| Conductor cross section flexible | 4 mm² … 25 mm² |
| Conductor cross section AWG | 12 … 3 |
