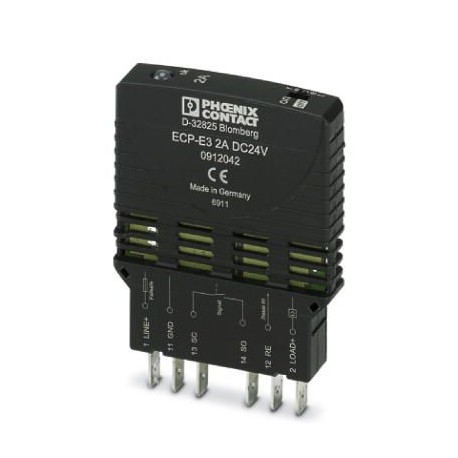

Key Commercial Data
| Orderkey | 0912042 |
|---|---|
| Packing unit | 5 pc |
| Catalog page | Page 325 (C-4-2017) |
| GTIN | 4046356144223 |
| Weight per Piece (excluding packing) | 43.560 g |
| Custom tariff number | 85362010 |
| Country of origin | DE (Germany) |
General
| Installation instructions | When mounted in rows without convection cooling, the nominal device current should only be led to a maximum of 80% due to the thermal effect during continuous operation (100% operating factor). Special precautionary measures must be taken in systems or machines, to prevent components from restarting (e.g., use of a safety PLC). Parallel connection of multiple circuit breakers is not permitted. |
|---|---|
| Number of levels | 1 |
| Mounting type | on base element |
| Color | black |
| Number of positions | 1 |
| Overvoltage category_GRP | II |
| Insulating material | PA66/6 |
| Flammability rating according to UL 94 | V0 |
Electrical data
| Fuse | electronic |
|---|---|
| Fuse type | Automatic device |
| Rated surge voltage | 0.5 kV |
| Operating voltage | 24 V DC |
| 24 V DC (at 50 °C (UL 2367, UL 508, ANSI/ISA 12.12.01)) | |
| 18 V DC … 32 V DC | |
| Nominal current IN | 2 A |
| Required backup fuse | not required, integrated failsafe element |
| Dielectric strength | max. 32 V DC (Load circuit) |
| Degree of pollution | 2 |
| Overvoltage category_GRP | II |
| Insulating material group | I |
| Switching capacity ICN | Active current limitation |
| Closed-circuit current range I0 | typ. 25 mA ±5 mA (When switched on) |
Dimensions
| Height | 60 mm |
|---|---|
| Width | 12.5 mm |
| Depth | 70 mm |
| Height NS 35/7,5 | 144 mm |
| Height NS 35/15 | 151.5 mm |
| Complete module height | 115 mm |
| Complete module width | 38 mm |
| Complete module depth | 112.5 mm |
Ambient conditions
| Degree of protection | IP30 (Actuation area) |
|---|---|
| Ambient temperature (operation) | 0 °C … 50 °C (non-condensing) |
