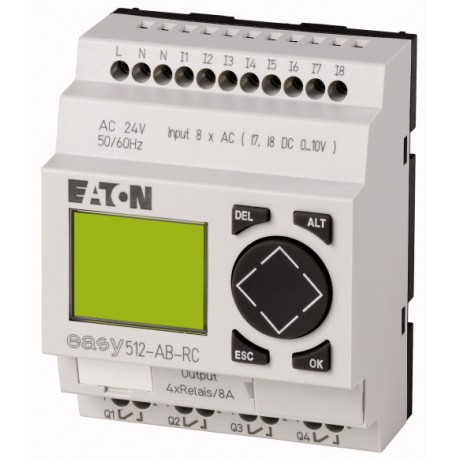

Control relay, 24VAC, 8DI(2AI), 4DO relays, display, time
Basic function
easy500
Description
Stand alone
customized laser inscription or delivery with user program possible with EASY-COMBINATION-* product (article No. 2010781)
customized laser inscription or delivery with user program possible with EASY-COMBINATION-* product (article No. 2010781)
Inputs
Digital
8
of which can be used as analog
2
Outputs
Quantity of outputs
Relays: 4
Outputs
4 Number
Additional features
Real time clock
✔
Display & keypad
✔
Supply voltage
24 V AC
Software
EASY-SOFT-BASIC/-PRO
Connection type
screw terminal
easy500
Description
Stand alone
customized laser inscription or delivery with user program possible with EASY-COMBINATION-* product (article No. 2010781)
customized laser inscription or delivery with user program possible with EASY-COMBINATION-* product (article No. 2010781)
Stand alone
customized laser inscription or delivery with user program possible with EASY-COMBINATION-* product (article No. 2010781)
customized laser inscription or delivery with user program possible with EASY-COMBINATION-* product (article No. 2010781)
8
of which can be used as analog
2
2
Relays: 4
4 Number
✔
✔
24 V AC
EASY-SOFT-BASIC/-PRO
screw terminal
Technical data
General
Standards
EN 55011, EN 55022, IEC/EN 61000-4, IEC 60068-2-6, IEC 60068-2-27
Approvals
CSA
UL
EAC
UL
EAC
Dimensions (W x H x D)
71.5 x 90 x 58 (4 PE) mm
Weight
0.2 kg
Mounting
Top-hat rail IEC/EN 60715, 35 mm or screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Terminal capacities
Solid
0.2/4 (AWG 22 – 12) mm2
Flexible with ferrule
0.2/2.5 (AWG 22 – 12) mm2
Standard screwdriver
0.8 x 3.5 mm
Max. tightening torque
0.6 Nm
Climatic environmental conditions
Operating ambient temperature
In accordance with IEC 60068-2-1, -25 – +55 °C
Condensation
Take appropriate measures to prevent condensation
LCD display (clearly legible)
0 – 55 °C
Storage [ϑ]
-40 – +70 °C
relative humidity
in accordance with IEC 60068-2-30, IEC 60068-2-78
5 – 95 %
5 – 95 %
Air pressure (operation)
795 – 1080 hPa
Ambient conditions, mechanical
Protection type (IEC/EN 60529, EN50178, VBG 4)
IP20
Vibrations
In accordance with IEC 60068-2-6
constant amplitude 0.15 mm: 10 – 57
constant acceleration 2 g: 57 – 150 Hz
constant amplitude 0.15 mm: 10 – 57
constant acceleration 2 g: 57 – 150 Hz
Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms
18 Impacts
Drop to IEC/EN 60068-2-31 [Drop height]
50 mm
Free fall, packaged (IEC/EN 60068-2-32)
1 m
Mounting position
Vertical or horizontal
Electromagnetic compatibility (EMC)
Overvoltage category/pollution degree
III/2
Electrostatic discharge (ESD)applied standard
nach IEC/EN 61000-4-2
Electrostatic discharge (ESD)Air discharge
8 kV
Electrostatic discharge (ESD)Contact discharge
6 kV
Electromagnetic fields (RFI) to IEC EN 61000-4-3
10 V/m
Radio interference suppression
EN 55011 Class B, EN 55022 Class B
Burst
according to IEC/EN 61000-4-4
Supply cables: 2
Signal cables: 2 kV
Supply cables: 2
Signal cables: 2 kV
power pulses (Surge)
according to IEC/EN 61000-4-5
2 kV (supply cables, symmetrical)
2 kV (supply cables, symmetrical)
Immunity to line-conducted interference to (IEC/EN 61000-4-6)
10 V
Insulation resistance
Clearance in air and creepage distances
EN 50178, UL 508, CSA C22.2, No. 142
Insulation resistance
EN 50178
Back-up of real-time clock
Back-up of real-time clock
① Backup time (hours) with fully charged double layer capacitor
② Service life (years)
② Service life (years)
Accuracy of real-time clock to inputs
typ. ± 2 (± 0.2 h⁄Year) s/day
depending on ambient air temperature fluctuations of up to ± 5 s/day (± 0.5 h⁄year) are possible
Repetition accuracy of timing relays
Accuracy of timing relays (of values)
± 1 %
ResolutionRange “S”
10 ms
ResolutionRange “M:S”
1 s
ResolutionRange “H:M”
1 min
Retentive memory
Write cycles of the retentive memory
1000000 (10⁶)
Power supply
Rated operational voltage [Ue]
24 AC V
Permissible range [Ue]
20.4 – 26.4 V AC
Frequency
50/60 (± 5%) Hz
Input current
normally 200 mA at 24 V AC 50/60 Hz
Voltage dips
≤ In accordance with IEC 61131-2
≤ 20 ms
≤ 20 ms
Fuse
≧ 1A (T) A
Power loss [P]
Normally 6 W
Digital inputs 24 V DC
Status Display
LCD-Display
Digital inputs 24 V AC
Number
8
Inputs can be used as analog inputs
2 (I7,I8)
Status Display
LCD-Display
Potential isolation
from power supply: no
between digital inputs: no
from the outputs: yes
to interface/memory card: no
between digital inputs: no
from the outputs: yes
to interface/memory card: no
Rated operational voltage [Ue]
24 V AC
Input voltage (AC = sinusoidal) [Ue]
Signal 0: 0 – 6 V AC
Signal 1: > 8 V AC / > 11 V DC (I7, I8), 14 – 26.4 V AC (I1 – I6) V
Signal 1: > 8 V AC / > 11 V DC (I7, I8), 14 – 26.4 V AC (I1 – I6) V
Rated frequency
50 – 60 Hz
Input current at signal 1
I1 – I6: 4 (at 24 V AC, 50 Hz)
I7, I8: 2 (at 24 V AC/DC) mA
I7, I8: 2 (at 24 V AC/DC) mA
Deceleration time
80⁄66⅔ (0 -> 1/1 -> 0, debounce ON 50/60Hz) for AC ms
Cable length
normally 40 (max. per input) m
Analog inputs
Number
2 (I7, I8)
Potential isolation
from power supply: no
between digital inputs: no
from the outputs: yes
to interface/memory card: no
between digital inputs: no
from the outputs: yes
to interface/memory card: no
Input type
DC voltage
Signal range
0-10 V DC
Resolution
0.01 V analog
0.01 V digital
10 Bit (value 0 – 1023)
0.01 V digital
10 Bit (value 0 – 1023)
Input impedance
11.2 kΩ
Accuracy of actual valuetwo devices from series
± 3 %
Accuracy of actual valueWithin a single device
± 2, (I7, I8, I11, I12) ± 0.12 V %
Conversion time, analog/digital
Input delay ON: 20; Input delay OFF: each cycle time ms
Input current
< 1 mA
Cable length
≦ 30, screened m
Relay outputs
Number
4
Outputs in groups of
1
Parallel switching of outputs for increased output
Not permissible
Protection of an output relay
Miniature circuit-breaker B16 or fuse 8 A (slow)
Potential isolation
from power supply: yes
From the inputs: yes
Safe isolation according to EN 50178: 300 V AC
Basic isolation: 600 V AC
From the inputs: yes
Safe isolation according to EN 50178: 300 V AC
Basic isolation: 600 V AC
Lifespan, mechanical [Operations]
10 x 106
ContactsConventional thermal current (10 A UL)
8 A
ContactsRecommended for load: 12 V AC/DC
> 500 mA
ContactsShort-circuit-proof cos ϕ = 1, characteristic B16 at 600 A
16 A
ContactsShort-circuit-proof cos ϕ = 0.5 to 0.7, characteristic B16 at 900 A
16 A
ContactsRated impulse withstand voltage Uimpof contact coil
6 kV
ContactsRated operational voltage [Ue]
250 V AC
Rated insulation voltage [Ui]
250 V AC
Safe isolation according to EN 50178
300 between coil and contact
300 between two contacts V AC
300 between two contacts V AC
Making capacityAC–-15, 250 V AC, 3 A (600 ops./h) [Operations]
300000
Making capacityDC-13, L/R ≦ 150 ms, 24 V DC, 1 A (500 S/h) [Operations]
200000
Breaking capacityAC-15, 250 V AC, 3 A (600 Ops./h) [Operations]
300000
Breaking capacityDC-13, L/R ≦ 150 ms, 24 V DC, 1 A (500 S/h) [Operations]
200000
Filament bulb load1000 W at 230/240 V AC [Operations]
25000
Filament bulb load500 W at 115/120 V AC [Operations]
25000
Fluorescent lamp loadFluorescent lamp load 10 x 58 W at 230/240 V ACWith upstream electrical device [Operations]
25000
Fluorescent lamp loadFluorescent lamp load 10 x 58 W at 230/240 V ACUncompensated [Operations]
25000
Fluorescent lamp loadFluorescent lamp load 1 x 58 W at 230/240 V AC, conventional, compensated [Operations]
25000
Switching frequencyMechanical operations
10 x 106
Switching frequencySwitching frequency
10 Hz
Switching frequencyResistive load/lamp load
2 Hz
Switching frequencyInductive load
0.5 Hz
UL/CSAUninterrupted current at 240 V AC
10 A
UL/CSAUninterrupted current at 24 V DC
8 A
UL/CSAACControl Circuit Rating Codes (utilization category)
B 300 Light Pilot Duty
UL/CSAACMax. rated operational voltage
300 V AC
UL/CSAACmax. thermal continuous current cos ϕ = 1 at B 300
5 A
UL/CSAACmax. make/break cos ϕ ≠ capacity 1 at B 300
3600/360 VA
UL/CSADCControl Circuit Rating Codes (utilization category)
R 300 Light Pilot Duty
UL/CSADCMax. rated operational voltage
300 V DC
UL/CSADCMax. thermal uninterrupted current at R 300
1 A
UL/CSADCMax. make/break capacity at R 300
28/28 VA
Supply voltage UAux
Power loss [P]
6 W
