EL-Nummer (Norway)
0004519604
0004519604
Delivery program
Product range
Control relay easyRelay
Multi-function-display MFD-Titan
Multi-function-display MFD-Titan
Product range

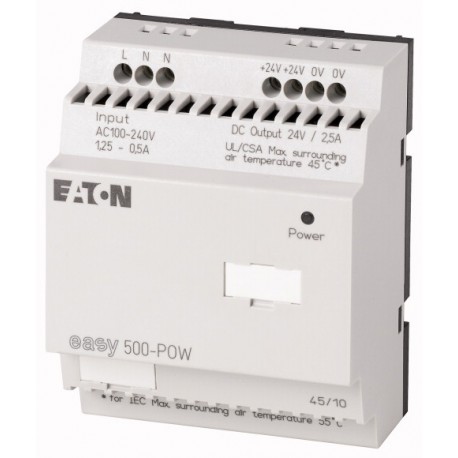

Switched-mode power supply units easyPOW
Description
primary chopper
controlled
controlled
Phases
Single-phase
Input voltage range
85 – 264 V AC
Nominal input voltage
100 – 240 V AC
Rated output voltage
24 V DC (± 3%)
Rated output current
2.5 A
For use with
easy500
easy700
easy800
MFD-CP8
EC4P
ES4P
easy700
easy800
MFD-CP8
EC4P
ES4P
Description
- Can be connected directly in parallel
Product range
Control relay easyRelay
Multi-function-display MFD-Titan
Multi-function-display MFD-Titan
Product range
Switched-mode power supply units easyPOW
Description
primary chopper
controlled
controlled
Phases
Single-phase
Input voltage range
85 – 264 V AC
Nominal input voltage
100 – 240 V AC
Rated output voltage
24 V DC (± 3%)
Rated output current
2.5 A
For use with
easy500
easy700
easy800
MFD-CP8
EC4P
ES4P
easy700
easy800
MFD-CP8
EC4P
ES4P
Description
- Can be connected directly in parallel
Control relay easyRelay
Multi-function-display MFD-Titan
Multi-function-display MFD-Titan
Product range
Switched-mode power supply units easyPOW
Switched-mode power supply units easyPOW
primary chopper
controlled
controlled
Single-phase
Input voltage range
85 – 264 V AC
85 – 264 V AC
100 – 240 V AC
24 V DC (± 3%)
2.5 A
easy500
easy700
easy800
MFD-CP8
EC4P
ES4P
easy700
easy800
MFD-CP8
EC4P
ES4P
- Can be connected directly in parallel
General
Standards
EN 55011, EN 55022, IEC/EN 61000-4, IEC 60068-2-6, IEC 60068-2-27
Dimensions (W x H x D)
71.5 (4 PE) x 90 x 58 mm
Weight
0.28 kg
Mounting
Top-hat rail IEC/EN 60715, 35 mm or screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Terminal capacities
Solid
0.2/4 (AWG 22 – 12) mm2
Flexible with ferrule
0.2/2.5 (AWG 22 – 12) mm2
Standard screwdriver
3.5 x 0.8 mm
Max. tightening torque
0.6 Nm
Climatic environmental conditions
Operating ambient temperature
-25 to 55, cold as per IEC 60068-2-1, heat as per IEC 60068-2-2 °C
Condensation
Take appropriate measures to prevent condensation
Storage
– 40 – 70 °C
Relative humidity, non-condensing (IEC/EN 60068-2-30)Air humidity, non-condensing, min.
5 %
Relative humidity, non-condensing (IEC/EN 60068-2-30)Air humidity, non-condensing, max.
95 %
Air pressure (operation)
795 – 1080 hPa
Max. installation altitude above sea level, observe derating with higher altitudes
2000 m
Ambient conditions, mechanical
Protection type (IEC/EN 60529, EN50178, VBG 4)
IP20
Vibrations (IEC/EN 60068-2-6)Constant amplitude 0.15 mm
10 – 57 Hz
Vibrations (IEC/EN 60068-2-6)Constant acceleration 2 g
57 – 150 Hz
Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms
18 Impacts
Drop to IEC/EN 60068-2-31 [Drop height]
50 mm
Free fall, packaged (IEC/EN 60068-2-32)
1 m
Mounting position
Horizontal, terminals top
Electromagnetic compatibility (EMC)
Electrostatic discharge (IEC/EN 61000-4-2, Level 3, ESD)Air discharge
8 kV
Electrostatic discharge (IEC/EN 61000-4-2, Level 3, ESD)Contact discharge
6 kV
Electromagnetic fields (RFI) to IEC EN 61000-4-3
10 V/m
Radio interference suppression
EN 55011 Class B, EN 55022 Class B
Burst pulses (IEC/EN 61000-4-4, level 3)
2 kV
Power pulses (surge) (IEC/EN 61000-4-5)
2 (supply cables, symmetrical) kV
High-energy pulses (surge) (IEC/EN 61000-4-5, level 2), 24 V
0.5 (outgoer cables symmetrical, EASY…DC) kV
Immunity to line-conducted interference to (IEC/EN 61000-4-6)
10 V
Surge voltage (EN 50178), 24 V
6 kV
Insulation resistance
Clearance in air and creepage distances
EN 50178
Insulation resistance
EN 50178
Protection class Uoutto Uin
Class II to IEC 60536
Potential isolation primary/secondary
Yes, SELV (VDE 0100 Part 410; IEC 60364-4-41, HD 384.4.41 S2) EN 60950, EN 50178
Input voltage
Rated input voltage DC
100/120/230/240 (-15/+10 %) V
Protective switches AC
FAZ-C2/1 oder FAZ-B6/1
DC protective switches
FAZ-C2/1-DC
Voltage range
85 – 264 V AC
Frequency range
47 – 63 Hz
Mains failure bridging 115/230 V (IEC/EN 61000-4-11)
> 20/> 40 ms
Fuse 115/230 V
2/1 slow A
Rating data
Efficiency
> 85 %
Power consumption
Normally 70 W
Power loss [P]
Normally 10 W
Input current
Input current nominal 115/240 V
Approx. 0.8/0.4 A
Inrush current at 25 °C 230 V
< 30 A
Output voltage
24 V DCRated value
24 V DC
24 V DCTolerance
± 3 %
24 V DCSwitching peaks 115/230
< 5 mVPP
24 V DCEffect of input voltage
± 1 %
24 V DCEffect with 25 – 100 % load change
± 2 %
24 V DCCan be connected in parallel to increase power
Yes
Output current
24 V DCOutput current
0 – 2.5 A
24 V DCEffectiveness of current limitation
> 2.8 A
24 V DCReduction of output voltage after current limitation
< 18 V
24 V DCOverload proof
Yes, by current limitation
24 V DCProof against sustained short circuit
Yes, hickup mode, approx. 2 Hz
Displays
Indication of output voltage (LED, continuous green light = OK)
24 V DC
Standards
EN 55011, EN 55022, IEC/EN 61000-4, IEC 60068-2-6, IEC 60068-2-27
EN 55011, EN 55022, IEC/EN 61000-4, IEC 60068-2-6, IEC 60068-2-27
71.5 (4 PE) x 90 x 58 mm
0.28 kg
Mounting
Top-hat rail IEC/EN 60715, 35 mm or screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Top-hat rail IEC/EN 60715, 35 mm or screw fixing using fixing brackets ZB4-101-GF1 (accessories)
0.2/4 (AWG 22 – 12) mm2
0.2/2.5 (AWG 22 – 12) mm2
3.5 x 0.8 mm
0.6 Nm
-25 to 55, cold as per IEC 60068-2-1, heat as per IEC 60068-2-2 °C
Take appropriate measures to prevent condensation
– 40 – 70 °C
5 %
95 %
795 – 1080 hPa
2000 m
IP20
10 – 57 Hz
57 – 150 Hz
18 Impacts
50 mm
1 m
Horizontal, terminals top
8 kV
6 kV
10 V/m
EN 55011 Class B, EN 55022 Class B
2 kV
2 (supply cables, symmetrical) kV
0.5 (outgoer cables symmetrical, EASY…DC) kV
10 V
6 kV
EN 50178
EN 50178
Class II to IEC 60536
Yes, SELV (VDE 0100 Part 410; IEC 60364-4-41, HD 384.4.41 S2) EN 60950, EN 50178
100/120/230/240 (-15/+10 %) V
FAZ-C2/1 oder FAZ-B6/1
FAZ-C2/1-DC
85 – 264 V AC
47 – 63 Hz
> 20/> 40 ms
2/1 slow A
> 85 %
Normally 70 W
Normally 10 W
Approx. 0.8/0.4 A
< 30 A
24 V DC
± 3 %
< 5 mVPP
± 1 %
± 2 %
Yes
0 – 2.5 A
> 2.8 A
< 18 V
Yes, by current limitation
Yes, hickup mode, approx. 2 Hz
24 V DC
Technical data for design verification
Rated operational current for specified heat dissipation [In]
0 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Equipment heat dissipation, current-dependent [Pvid]
0 W
Static heat dissipation, non-current-dependent [Pvs]
10 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+55 °C
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard’s requirements.
10.3 Degree of protection of ASSEMBLIES
Meets the product standard’s requirements.
10.4 Clearances and creepage distances
Meets the product standard’s requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder’s responsibility.
10.8 Connections for external conductors
Is the panel builder’s responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder’s responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder’s responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder’s responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder’s responsibility.
10.12 Electromagnetic compatibility
Is the panel builder’s responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Rated operational current for specified heat dissipation [In]
0 A
0 A
0 W
0 W
Static heat dissipation, non-current-dependent [Pvs]
10 W
10 W
0 W
-25 °C
+55 °C
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Does not apply, since the entire switchgear needs to be evaluated.
Does not apply, since the entire switchgear needs to be evaluated.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Does not apply, since the entire switchgear needs to be evaluated.
Does not apply, since the entire switchgear needs to be evaluated.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 7.0
PLC’s (EG000024) / PLC system power supply (EC000599)
Electric engineering, automation, process control engineering / Control / Programmable logic control (SPS) / SPS system power supply ([email protected] [AKE532014])
Input voltage at AC 50 Hz
85 – 264 V
Input voltage at AC 60 Hz
85 – 264 V
Input voltage at DC
0 – 0 V
Type of voltage (input voltage)
AC
Max. input current AC 50 Hz
0 A
Max. input current AC 60 Hz
0 A
Max. input current DC
0 A
Type of output voltage
DC
Type of output voltage
DC
Output voltage at AC 50 Hz
0 – 0 V
Output voltage at AC 60 Hz
0 – 0 V
Output voltage at DC
0 – 0 V
Max. output current AC 50 Hz
0 A
Max. output current AC 60 Hz
0 A
Max. output current DC
2.5 A
Power output
60 W
Redundancy
No
Suitable for safety functions
No
Width
72 mm
Height
90 mm
Depth
60 mm
PLC’s (EG000024) / PLC system power supply (EC000599)
Electric engineering, automation, process control engineering / Control / Programmable logic control (SPS) / SPS system power supply ([email protected] [AKE532014])
Input voltage at AC 50 Hz
85 – 264 V
Input voltage at AC 60 Hz
85 – 264 V
Input voltage at DC
0 – 0 V
Type of voltage (input voltage)
AC
Max. input current AC 50 Hz
0 A
Max. input current AC 60 Hz
0 A
Max. input current DC
0 A
Type of output voltage
DC
Type of output voltage
DC
Output voltage at AC 50 Hz
0 – 0 V
Output voltage at AC 60 Hz
0 – 0 V
Output voltage at DC
0 – 0 V
Max. output current AC 50 Hz
0 A
Max. output current AC 60 Hz
0 A
Max. output current DC
2.5 A
Power output
60 W
Redundancy
No
Suitable for safety functions
No
Width
72 mm
Height
90 mm
Depth
60 mm
Electric engineering, automation, process control engineering / Control / Programmable logic control (SPS) / SPS system power supply ([email protected] [AKE532014])
85 – 264 V
85 – 264 V
Input voltage at DC
0 – 0 V
0 – 0 V
AC
0 A
0 A
0 A
DC
DC
0 – 0 V
0 – 0 V
0 – 0 V
0 A
0 A
2.5 A
60 W
No
No
72 mm
90 mm
60 mm
Product Standards
IEC/EN see Technical Data; UL 508; CSA C22.2 No. 107.1-01; CE marking
UL File No.
E300415
UL Category Control No.
NMTR, NMTR7
CSA File No.
UL report applies to both US and Canada
CSA Class No.
3211-87, 3211-07
North America Certification
UL listed, certified by UL for use in Canada
Degree of Protection
IEC: IP20, UL/CSA Type: –
IEC/EN see Technical Data; UL 508; CSA C22.2 No. 107.1-01; CE marking
UL File No.
E300415
E300415
NMTR, NMTR7
UL report applies to both US and Canada
CSA Class No.
3211-87, 3211-07
3211-87, 3211-07
UL listed, certified by UL for use in Canada
IEC: IP20, UL/CSA Type: –
Sản phẩm tương tự
Modular Switchgear – Big Home
PLS6-C25/3N-MW 243020 EATON ELECTRIC Over current switch, 25A, 3pole+N, type C characteristic
Modular Switchgear – Big Home
PLS6-C16/3-MW 242949 EATON ELECTRIC Over current switch, 16A, 3 p, type C characteristic
Modular Switchgear – Big Home
PLS6-C40/3N-MW 243022 EATON ELECTRIC Over current switch, 40A, 3pole+N, type C characteristic
Modular Switchgear – Big Home
PLS6-C40/4-MW 243091 EATON ELECTRIC Over current switch, 40A, 4 p, type C characteristic
Modular Switchgear – Big Home
HN-C16/3 194891 EATON ELECTRIC Residential magnetothermic int., 3P, C-curve, 16A
Modular Switchgear – Big Home
PLS6-C20/4-MW 243088 EATON ELECTRIC Over current switch, 20A, 4 p, type C characteristic
Modular Switchgear – Big Home
PLS6-C63/3N-MW 243024 EATON ELECTRIC Over current switch, 63A, 3pole+N, type C characteristic
Modular Switchgear – Big Home
PLS6-C50/3-MW 242954 EATON ELECTRIC Over current switch, 50A, 3 p, type C characteristic
