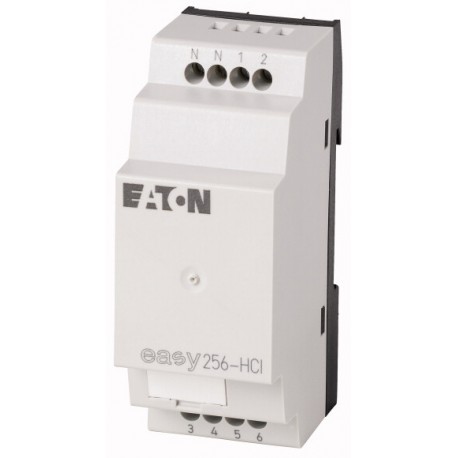

EASY256-HCI 231168 0004520991 EATON ELECTRIC Interferrence-suppression device with cable lengths up to 100m,..
EASY256-HCI 231168 0004520991 EATON ELECTRIC Interferrence-suppression device with cable lengths up to 100m,..
Interferrence-suppression device with cable lengths up to 100m, 6-channel, for 115/230VAC inputs
Liên hệ:
4520991
Interferrence-suppression device with cable lengths up to 100m, 6-channel, for 115/230VAC inputs
General
Standards
EN 55011, EN 55022, IEC/EN 61000-4
Dimensions (W x H x D)
35.5 x 90 x 58 (2 PE) mm
Mounting
Top-hat rail IEC/EN 60715, 35 mm or screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Channels
6 Qty.
Voltage range at Ue
0 – 264
Higher current 115/230 V AC
4/6 mA
Extension of the switch off delay per EASY input (“1” to “0”) 50/60 Hz
40/37 ms
Cable length
100 m
Parallel switching of outputs for increased output
Multiple possibilities (the switch-off delay extends accordingly with the respective number of parallel channels)
Type or resistance
Capitative
Terminal capacities
Solid
0.2/4 (AWG 22 – 12) mm2
Flexible with ferrule
0.2/2.5 (AWG 22 – 12) mm2
Standard screwdriver
0.8 x 3.5 mm
Max. tightening torque
0.6 Nm
Climatic environmental conditions
Operating ambient temperature
-25 to 55, cold as per IEC 60068-2-1, heat as per IEC 60068-2-2 °C
Condensation
Take appropriate measures to prevent condensation
Storage
– 40 – 70 °C
Relative humidity, non-condensing (IEC/EN 60068-2-30)
5 – 95 %
Air pressure (operation)
795 – 1080 hPa
Ambient conditions, mechanical
Protection type (IEC/EN 60529, EN50178, VBG 4)
IP20
Vibrations (IEC/EN 60068-2-6)Constant amplitude 0.15 mm
10 – 57 Hz
Vibrations (IEC/EN 60068-2-6)Constant acceleration 2 g
57 – 150 Hz
Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms
18 Impacts
Drop to IEC/EN 60068-2-31 [Drop height]
50 mm
Free fall, packaged (IEC/EN 60068-2-32)
1 m
Mounting position
Vertical or horizontal
Electromagnetic compatibility (EMC)
Overvoltage category/pollution degree
II/2
Electrostatic discharge (IEC/EN 61000-4-2, Level 3, ESD)Air discharge
8 kV
Electrostatic discharge (IEC/EN 61000-4-2, Level 3, ESD)Contact discharge
6 kV
Electromagnetic fields (IEC/EN 61000-4-3, RFI) [V/m]
10
Radio interference suppression
EN 55011 Class B, EN 55022 Class B
power pulses (surge) (IEC/EN 61000-4-5, level 2)
2 (supply cables, symmetrical, EASY…DC) kV
Immunity to line-conducted interference to (IEC/EN 61000-4-6)
10 V
Insulation resistance
Clearance in air and creepage distances
EN 50178, UL 508, CSA C22.2, No. 142
Insulation resistance
EN 50178
Standards
EN 55011, EN 55022, IEC/EN 61000-4
EN 55011, EN 55022, IEC/EN 61000-4
35.5 x 90 x 58 (2 PE) mm
Top-hat rail IEC/EN 60715, 35 mm or screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Channels
6 Qty.
6 Qty.
0 – 264
4/6 mA
40/37 ms
100 m
Multiple possibilities (the switch-off delay extends accordingly with the respective number of parallel channels)
Capitative
0.2/4 (AWG 22 – 12) mm2
0.2/2.5 (AWG 22 – 12) mm2
0.8 x 3.5 mm
0.6 Nm
-25 to 55, cold as per IEC 60068-2-1, heat as per IEC 60068-2-2 °C
Take appropriate measures to prevent condensation
– 40 – 70 °C
5 – 95 %
795 – 1080 hPa
IP20
10 – 57 Hz
57 – 150 Hz
18 Impacts
50 mm
1 m
Vertical or horizontal
II/2
8 kV
6 kV
10
EN 55011 Class B, EN 55022 Class B
2 (supply cables, symmetrical, EASY…DC) kV
10 V
EN 50178, UL 508, CSA C22.2, No. 142
EN 50178
Design verification as per IEC/EN 61439
Technical data for design verification
Rated operational current for specified heat dissipation [In]
0 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Equipment heat dissipation, current-dependent [Pvid]
0 W
Static heat dissipation, non-current-dependent [Pvs]
0 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+55 °C
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard’s requirements.
10.3 Degree of protection of ASSEMBLIES
Meets the product standard’s requirements.
10.4 Clearances and creepage distances
Meets the product standard’s requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder’s responsibility.
10.8 Connections for external conductors
Is the panel builder’s responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder’s responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder’s responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder’s responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder’s responsibility.
10.12 Electromagnetic compatibility
Is the panel builder’s responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data for design verification
Rated operational current for specified heat dissipation [In]
0 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Equipment heat dissipation, current-dependent [Pvid]
0 W
Static heat dissipation, non-current-dependent [Pvs]
0 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+55 °C
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard’s requirements.
10.3 Degree of protection of ASSEMBLIES
Meets the product standard’s requirements.
10.4 Clearances and creepage distances
Meets the product standard’s requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder’s responsibility.
10.8 Connections for external conductors
Is the panel builder’s responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder’s responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder’s responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder’s responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder’s responsibility.
10.12 Electromagnetic compatibility
Is the panel builder’s responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Rated operational current for specified heat dissipation [In]
0 A
0 A
0 W
0 W
Static heat dissipation, non-current-dependent [Pvs]
0 W
0 W
0 W
-25 °C
+55 °C
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Does not apply, since the entire switchgear needs to be evaluated.
Does not apply, since the entire switchgear needs to be evaluated.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Does not apply, since the entire switchgear needs to be evaluated.
Does not apply, since the entire switchgear needs to be evaluated.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
PLC’s (EG000024) / Accessories for controls (EC002584)
Electric engineering, automation, process control engineering / Control / Programmable logic control (SPS) / Programmable logic control (SPS, accessories) ([email protected] [AFR333003])
Type of electrical accessory
Other
Type of mechanical accessory
Other
Electric engineering, automation, process control engineering / Control / Programmable logic control (SPS) / Programmable logic control (SPS, accessories) ([email protected] [AFR333003])
Other
Other
Product Standards
IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking
UL File No.
E135462
UL Category Control No.
NRAQ
CSA File No.
012528
CSA Class No.
2252-01
North America Certification
UL listed, CSA certified
Degree of Protection
IEC: IP20, UL/CSA Type: –
IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking
UL File No.
E135462
E135462
NRAQ
012528
CSA Class No.
2252-01
2252-01
UL listed, CSA certified
IEC: IP20, UL/CSA Type: –
Sản phẩm tương tự
Modular Switchgear – Big Home
PLS6-C16/3-MW 242949 EATON ELECTRIC Over current switch, 16A, 3 p, type C characteristic
Modular Switchgear – Big Home
PLS6-C25/3-MW 242951 EATON ELECTRIC Over current switch, 25A, 3 p, type C characteristic
Modular Switchgear – Big Home
PLS6-C32/3N-MW 243021 EATON ELECTRIC Over current switch, 32A, 3pole+N, type C characteristic
Modular Switchgear – Big Home
PLS6-C20/4-MW 243088 EATON ELECTRIC Over current switch, 20A, 4 p, type C characteristic
Modular Switchgear – Big Home
PLS6-C50/3N-MW 243023 EATON ELECTRIC Over current switch, 50A, 3pole+N, type C characteristic
Modular Switchgear – Big Home
PLS6-C40/4-MW 243091 EATON ELECTRIC Over current switch, 40A, 4 p, type C characteristic
Modular Switchgear – Big Home
PLS6-C16/3N-MW 243018 EATON ELECTRIC Over current switch, 16A, 3pole+N, type C characteristic
Modular Switchgear – Big Home
PLS6-C10/4-MW 243083 EATON ELECTRIC Over current switch, 10A, 4 p, type C characteristic
