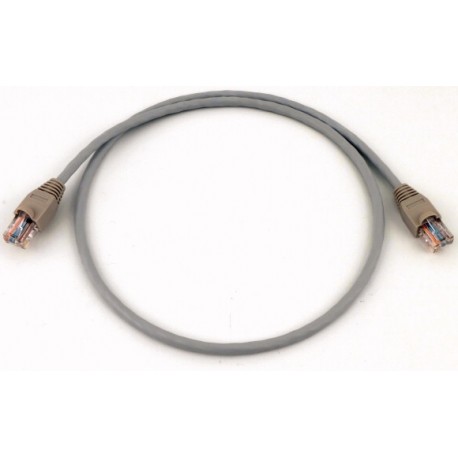

Connecting cable for networking devices via easyNet, 2xRJ45, 150cm
Description
Connection cable for XC200 to interface switch
Length
1.5 m
For use with
easy800
MFD-…-CP8…
MFD-…-CP8…
For use with
easyNet
Connection cable for XC200 to interface switch
Length
1.5 m
1.5 m
easy800
MFD-…-CP8…
MFD-…-CP8…
easyNet
Technical data
Pairs 2 x 0.14 mm²
Conductor material
E-Cu 58 F21 nach DIN 40500 Teil 4
Conductor material
Max. 0.49 mm (Cu wire bare 7 x 0.16 mm2)
Core
0.60 mm ±0.10 (dielectric polyethylene, halogen free, every two cores paired and twisted: wsbl-bl, wsor-or, wsgn-gn, wsbr-br)
Stranding
Four pairs
Sheath
4.5 mm ± 0.2 (halogen free casing material, flame retardant (FRNC)) mm2
Pairs 2 x 0.14 mm²
Conductor material
E-Cu 58 F21 nach DIN 40500 Teil 4
Conductor material
Max. 0.49 mm (Cu wire bare 7 x 0.16 mm2)
Core
0.60 mm ±0.10 (dielectric polyethylene, halogen free, every two cores paired and twisted: wsbl-bl, wsor-or, wsgn-gn, wsbr-br)
Stranding
Four pairs
Sheath
4.5 mm ± 0.2 (halogen free casing material, flame retardant (FRNC)) mm2
Conductor material
E-Cu 58 F21 nach DIN 40500 Teil 4
E-Cu 58 F21 nach DIN 40500 Teil 4
Max. 0.49 mm (Cu wire bare 7 x 0.16 mm2)
0.60 mm ±0.10 (dielectric polyethylene, halogen free, every two cores paired and twisted: wsbl-bl, wsor-or, wsgn-gn, wsbr-br)
Stranding
Four pairs
Four pairs
4.5 mm ± 0.2 (halogen free casing material, flame retardant (FRNC)) mm2
Technical data for design verification
Rated operational current for specified heat dissipation [In]
0 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Equipment heat dissipation, current-dependent [Pvid]
0 W
Static heat dissipation, non-current-dependent [Pvs]
0 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+55 °C
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard’s requirements.
10.3 Degree of protection of ASSEMBLIES
Meets the product standard’s requirements.
10.4 Clearances and creepage distances
Meets the product standard’s requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder’s responsibility.
10.8 Connections for external conductors
Is the panel builder’s responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder’s responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder’s responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder’s responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder’s responsibility.
10.12 Electromagnetic compatibility
Is the panel builder’s responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Rated operational current for specified heat dissipation [In]
0 A
0 A
0 W
0 W
Static heat dissipation, non-current-dependent [Pvs]
0 W
0 W
0 W
-25 °C
+55 °C
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Does not apply, since the entire switchgear needs to be evaluated.
Does not apply, since the entire switchgear needs to be evaluated.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Does not apply, since the entire switchgear needs to be evaluated.
Does not apply, since the entire switchgear needs to be evaluated.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Cables (EG000001) / Data and communication cable (copper) (EC003249)
Conductor surface
Bare
Diameter conductor
4.5 mm
Nominal cross section conductor
0.14 mm²
AWG-size
26
Conductor category
Class 2 = stranded
Number of cores
8
Number of stranding elements
2
Stranding element
Pairs
Core insulation material
Other
Specification core insulation
Core identification
Colour
Screen over stranding element
None
Stranding
Screen over stranding
None
Longitudinal water blocking cable
Radial water blocking cable
Protective sheath
Armouring
Material outer sheath
Specification material outer sheath
Colour outer sheath
Grey
Reaction-to-fire class according to EN 13501-6
Smoke development class according to EN 13501-6
Euro class flaming droplets/particles according to EN 13501-6
Euro class acidity according to EN 13501-6
Halogen free (acc. EN 60754-1/2)
Yes
Halogen free (acc. IEC 60754-2)
Flame retardant
No
Low smoke (acc. EN 61034-2)
No
Low smoke (acc. IEC 61034-2)
Yes
Oil resistant (acc. EN 60811-404)
Oil resistant (acc. IEC 60811-404)
Insulation integrity in accordance with IEC 60331
Circuit integrity
Outer diameter approx.
4.5 mm
Min. permitted bending radius, moving application with forced guidance
mm
Min. permitted bending radius, moving application/free movement
mm
Min. permitted bending radius, stationary application/permanent installation
mm
Permitted cable outer temperature during assembling/handling
-25 – 60 °C
Permitted cable outer temperature after assembling without vibration
-25 – 60 °C
Category
5E
NVP value
67 %
Underground installation
No
UV resistant
Conductor surface
Bare
Bare
4.5 mm
0.14 mm²
AWG-size
26
26
Class 2 = stranded
8
2
Pairs
Other
Colour
None
None
Grey
Yes
No
No
Yes
4.5 mm
mm
mm
mm
-25 – 60 °C
-25 – 60 °C
5E
67 %
No
Product Standards
IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking
UL File No.
E135462
UL Category Control No.
NRAQ
CSA File No.
012528
CSA Class No.
2258-02
North America Certification
UL listed, CSA certified
Degree of Protection
IEC: IP20, UL/CSA Type: –
IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking
UL File No.
E135462
E135462
NRAQ
012528
CSA Class No.
2258-02
2258-02
UL listed, CSA certified
IEC: IP20, UL/CSA Type: –
