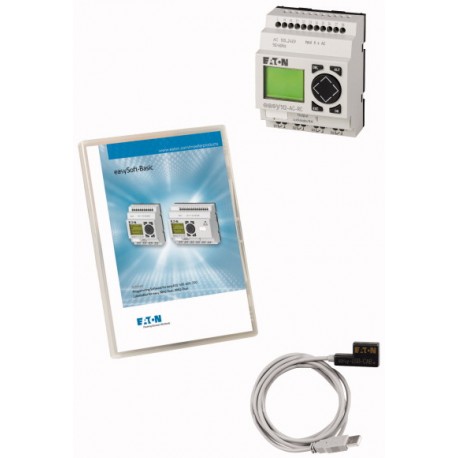

Starter kit for getting started with control engineering quickly and easily. The starter kit includes the control relay EASY512-AC-RC, the programming cable easy-USB-CAB for connecting the control relay to the USB interface of the computer, the programming software easySoft-Basic on CD, as well as the documentation and manual as pdf. 8 digital inputs, 4 output signals (relay 8A) are available.
Product range
Control relay easyRelay
Basic function
Starter kit
Heat dissipation at 24 V DC
6 W
Control relay easyRelay
Basic function
Starter kit
Starter kit
6 W
General
Standards
EN 55011, EN 55022, IEC/EN 61000-4, IEC 60068-2-6, IEC 60068-2-27
Approvals
CSA
UL
EAC
UL
EAC
Mounting
Top-hat rail IEC/EN 60715, 35 mm or screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Terminal capacities
Solid
0.2/4 (AWG 22 – 12) mm2
Flexible with ferrule
0.2/2.5 (AWG 22 – 12) mm2
Climatic environmental conditions
Operating ambient temperature
In accordance with IEC 60068-2-1, -25 – +55 °C
Condensation
Take appropriate measures to prevent condensation
relative humidity
in accordance with IEC 60068-2-30, IEC 60068-2-78
5 – 95 %
5 – 95 %
Air pressure (operation)
795 – 1080 hPa
Ambient conditions, mechanical
Protection type (IEC/EN 60529, EN50178, VBG 4)
IP20
Vibrations
In accordance with IEC 60068-2-6
constant amplitude 0.15 mm: 10 – 57
constant acceleration 2 g: 57 – 150 Hz
constant amplitude 0.15 mm: 10 – 57
constant acceleration 2 g: 57 – 150 Hz
Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms
18 Impacts
Drop to IEC/EN 60068-2-31 [Drop height]
50 mm
Free fall, packaged (IEC/EN 60068-2-32)
1 m
Mounting position
Vertical or horizontal
Electromagnetic compatibility (EMC)
Overvoltage category/pollution degree
III/2
Electrostatic discharge (ESD)applied standard
according to IEC EN 61000-4-2
Electrostatic discharge (ESD)Air discharge
8 kV
Electrostatic discharge (ESD)Contact discharge
6 kV
Immunity to line-conducted interference to (IEC/EN 61000-4-6)
10 V
Insulation resistance
Clearance in air and creepage distances
EN 50178, UL 508, CSA C22.2, No. 142
Insulation resistance
EN 50178
Power supply
Heat dissipation at 24 V DC
6 W
Standards
EN 55011, EN 55022, IEC/EN 61000-4, IEC 60068-2-6, IEC 60068-2-27
EN 55011, EN 55022, IEC/EN 61000-4, IEC 60068-2-6, IEC 60068-2-27
CSA
UL
EAC
UL
EAC
Top-hat rail IEC/EN 60715, 35 mm or screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Terminal capacities
0.2/4 (AWG 22 – 12) mm2
0.2/2.5 (AWG 22 – 12) mm2
In accordance with IEC 60068-2-1, -25 – +55 °C
Take appropriate measures to prevent condensation
in accordance with IEC 60068-2-30, IEC 60068-2-78
5 – 95 %
5 – 95 %
795 – 1080 hPa
IP20
In accordance with IEC 60068-2-6
constant amplitude 0.15 mm: 10 – 57
constant acceleration 2 g: 57 – 150 Hz
constant amplitude 0.15 mm: 10 – 57
constant acceleration 2 g: 57 – 150 Hz
18 Impacts
50 mm
1 m
Vertical or horizontal
III/2
according to IEC EN 61000-4-2
8 kV
6 kV
10 V
EN 50178, UL 508, CSA C22.2, No. 142
EN 50178
6 W
Design verification as per IEC/EN 61439
Technical data for design verification
Static heat dissipation, non-current-dependent [Pvs]
6 W
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+55 °C
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard’s requirements.
10.3 Degree of protection of ASSEMBLIES
Meets the product standard’s requirements.
10.4 Clearances and creepage distances
Meets the product standard’s requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder’s responsibility.
10.8 Connections for external conductors
Is the panel builder’s responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder’s responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder’s responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder’s responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder’s responsibility.
10.12 Electromagnetic compatibility
Is the panel builder’s responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data for design verification
Static heat dissipation, non-current-dependent [Pvs]
6 W
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+55 °C
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard’s requirements.
10.3 Degree of protection of ASSEMBLIES
Meets the product standard’s requirements.
10.4 Clearances and creepage distances
Meets the product standard’s requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder’s responsibility.
10.8 Connections for external conductors
Is the panel builder’s responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder’s responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder’s responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder’s responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder’s responsibility.
10.12 Electromagnetic compatibility
Is the panel builder’s responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Static heat dissipation, non-current-dependent [Pvs]
6 W
6 W
-25 °C
+55 °C
IEC/EN 61439 design verification
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Does not apply, since the entire switchgear needs to be evaluated.
Does not apply, since the entire switchgear needs to be evaluated.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Does not apply, since the entire switchgear needs to be evaluated.
Does not apply, since the entire switchgear needs to be evaluated.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
PLC’s (EG000024) / Logic module (EC001417)
Electric engineering, automation, process control engineering / Control / Programmable logic control (SPS) / Logic module ([email protected] [AKE539014])
Supply voltage AC 50 Hz
85 – 264 V
Supply voltage AC 60 Hz
85 – 264 V
Supply voltage DC
0 – 0 V
Voltage type of supply voltage
AC
Switching current
8 A
Number of analogue inputs
0
Number of analogue outputs
0
Number of digital inputs
8
Number of digital outputs
4
With relay output
Yes
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
1
With optical interface
No
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
Redundancy
No
With display
Yes
Degree of protection (IP)
IP20
Basic device
Yes
Expandable
No
Expansion device
No
With timer
Yes
Rail mounting possible
Yes
Wall mounting/direct mounting
Yes
Front build in possible
No
Rack-assembly possible
No
Suitable for safety functions
No
Category according to EN 954-1
None
SIL according to IEC 61508
None
Performance level acc. EN ISO 13849-1
None
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Width
71.5 mm
Height
90 mm
Depth
58 mm
Electric engineering, automation, process control engineering / Control / Programmable logic control (SPS) / Logic module ([email protected] [AKE539014])
85 – 264 V
85 – 264 V
Supply voltage DC
0 – 0 V
0 – 0 V
AC
8 A
0
0
8
4
Yes
0
0
0
0
0
0
0
0
0
1
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
Yes
IP20
Yes
No
No
Yes
Yes
Yes
No
No
No
None
None
None
No
No
None
None
71.5 mm
90 mm
58 mm
Sản phẩm tương tự
Modular Switchgear – Big Home
PLS6-C6/3-MW 242943 EATON ELECTRIC Over current switch, 6A, 3 p, type C characteristic
Modular Switchgear – Big Home
PLS6-C25/3N-MW 243020 EATON ELECTRIC Over current switch, 25A, 3pole+N, type C characteristic
Modular Switchgear – Big Home
PLS6-C10/3-MW 242945 EATON ELECTRIC Over current switch, 10A, 3 p, type C characteristic
Modular Switchgear – Big Home
PLS6-C40/3N-MW 243022 EATON ELECTRIC Over current switch, 40A, 3pole+N, type C characteristic
Modular Switchgear – Big Home
PLS6-C4/3N-MW 243010 EATON ELECTRIC Over current switch, 4A, 3pole+N, type C characteristic
Modular Switchgear – Big Home
PLS6-C40/4-MW 243091 EATON ELECTRIC Over current switch, 40A, 4 p, type C characteristic
Modular Switchgear – Big Home
PLS6-C10/4-MW 243083 EATON ELECTRIC Over current switch, 10A, 4 p, type C characteristic
Modular Switchgear – Big Home
PLS6-C50/3N-MW 243023 EATON ELECTRIC Over current switch, 50A, 3pole+N, type C characteristic
