Key Commercial Data
| Orderkey | 0899318 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 536 (C-3-2017) |
| GTIN | 4055626275871 |
| Weight per Piece (excluding packing) | 99.990 g |
| Custom tariff number | 85389099 |
| Country of origin | IN (India) |
General

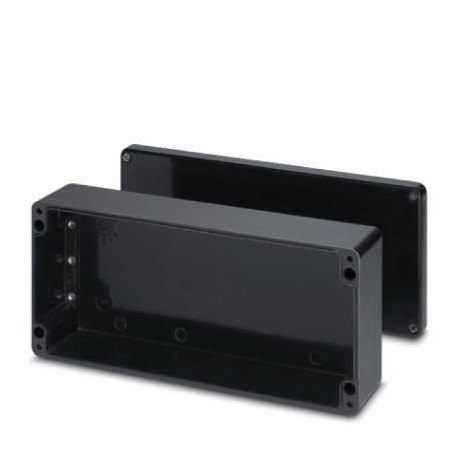

| Type | Ex empty enclosure with cover |
|---|---|
| Note | Prepared for direct installation of a DIN rail |
| Color | black |
| Flammability rating according to UL 94 | V0 |
| Direct DIN rail mounting | yes |
| Useable DIN rail type | NS 35 |
Dimensions
| Width | 250 mm |
|---|---|
| Height | 400 mm |
| Depth | 121 mm |
| Clearance width, maximum DIN rail length | 381 mm |
| Assembly length, max. | 362 mm |
General
| Housing material | Glass-fiber-reinforced polyester with added graphite |
|---|---|
| Cover fastening | Screw-on cover |
| Note | Plus/minus screw |
| Fixing device | External fixing clips available as an option |
| Integrated blind hole | |
| Seal material | Silicon |
| Components | halogen-free |
Ambient conditions
| Degree of protection of housing (IP) | IP66 |
|---|---|
| Protection class | II |
| Degree of protection (IK) | 7.00 J EN 60079-0 |
| Temperature in operating conditions | -55 °C … 127 °C |
Standards and Regulations
| Standards/regulations | EN 60079-0 |
|---|---|
| Flammability rating according to UL 94 | V0 |
