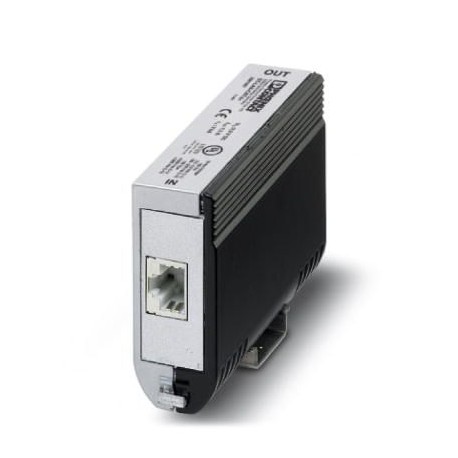

Key Commercial Data
| Orderkey | 2881007 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 142 (C-4-2017) |
| GTIN | 4046356151900 |
| Weight per Piece (excluding packing) | 314.100 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 70 °C |
| Degree of protection | IP20 |
General
| Housing material | Zinc die-cast |
|---|---|
| Color | silver/black |
| Mounting type | Connection-specific attachment plug and DIN rail, 35 mm |
| Type | Attachment plug for DIN rail mounting |
| Number of positions | 8 |
| Direction of action | Line-Line & Line-Ground/Shield |
Protective circuit
| IEC test classification | B2 |
|---|---|
| C1 | |
| C2 | |
| C3 | |
| D1 | |
| Maximum continuous voltage UC(wire-wire) | ≤ 3.3 V DC (± 60 V DC/PoE+) |
| Rated current | ≤ 1.5 A (25 °C) |
| Operating effective current ICat UC | ≤ 1 µA |
| Residual current IPE | ≤ 400 µA |
| Nominal discharge current In(8/20) µs (line-line) | 100 A |
| Nominal discharge current In(8/20) µs (line-earth) | 2 kA (per signal pair) |
| Total discharge current Itotal(8/20) µs | 10 kA |
| Nominal pulse current Ian (10/700) µs (line-line) | ≤ 40 A |
| Nominal pulse current Ian (10/700) µs (line-earth) | ≤ 160 A |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 85 V (PoE) |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 700 V |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 9 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 700 V |
| Residual voltage at In(line-line) | ≤ 15 V |
| ≤ 100 V (PoE) | |
| Voltage protection level Up(line-line) | ≤ 9 V (B2 – 1 kV / 25 A) |
| ≤ 100 V (B2 – 1 kV / 25 A – PoE) | |
| ≤ 12 V (C3 – 20 A) | |
| Voltage protection level Up(line-earth) | ≤ 900 V (B2 – 4 kV / 100 A) |
| ≤ 700 V (C2 – 4 kV / 2 kA) | |
| ≤ 1 kV (C3 – 80 A) | |
| Response time tA(line-line) | ≤ 1 ns |
| Response time tA(line-earth) | ≤ 100 ns |
| Input attenuation aE, sym. | ≤ 1 dB (up to100 MHz/direct measuring) |
| ≤ 1 dB (up to 250 MHz/direct measuring) | |
| ≤ 3 dB (up to 500 MHz/direct measuring) | |
| Near-end crosstalk attenuation | ≥ 35 dB (250 MHz/100 Ω/link) |
| ≥ 45 dB (100 MHz / 100 Ω / Link) | |
| ≥ 27 dB (500 MHz / 100 Ω / Link) | |
| ≥ 39 dB (250 MHz/100 Ω/direct measuring) | |
| Capacity (line-line) | typ. 12 pF (f= 1 MHz / VR= 0 V) |
| Capacity (line-earth) | typ. 2 pF (f= 1 MHz / VR= 0 V) |
| Surge protection fault message | none |
| Impulse durability (line-line) | B2 – 1 kV / 25 A |
| C3 – 20 A | |
| Impulse durability (line-earth) | B2 – 4 kV/100 A |
| C2 – 4 kV/2 kA | |
| C3 – 80 A | |
| D1 – 1 kA |
