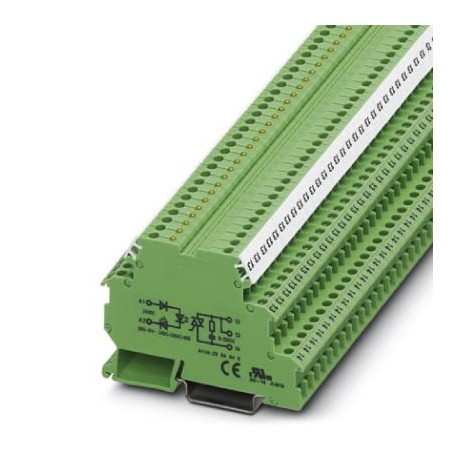

DEK-OV- 24DC/240AC/800 2964649 PHOENIX CONTACT Solid-state relay terminal block

DEK-OV- 24DC/240AC/800 2964649 PHOENIX CONTACT Solid-state relay terminal block

DEK-OV- 24DC/240AC/800 2964649 PHOENIX CONTACT Solid-state relay terminal block

Solid-state relay terminal block

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 2964649 Danh mục: Industrial Relays Thẻ: 2964649, DEK-OV- 24DC/240AC/800, PHOENIX_CONTACT

Mô tả

Key Commercial Data

Orderkey	2964649
Packing unit	10 pc
Catalog page	Page 441 (C-5-2017)
GTIN	4017918131043
Weight per Piece (excluding packing)	21.000 g
Custom tariff number	85364190
Country of origin	CN (China)

Dimensions

Width	6.2 mm
Height	80 mm
Depth	56 mm

Ambient conditions

Ambient temperature (operation)	-20 °C … 60 °C
Ambient temperature (storage/transport)	-20 °C … 70 °C

Input data

Nominal input voltage U_N	24 V DC
Input voltage range in reference to U_N	0.8 … 1.2
Input voltage range	19.2 V DC … 28.8 V DC
Switching threshold “0” signal in reference to U_N	≤ 0.4
Switching threshold “1” signal in reference to U_N	≥ 0.8
Typical input current at U_N	10.7 mA
Typical response time	< 10 ms
Typical turn-off time	< 10 ms
Operating voltage display	Yellow LED
Type of protection	Reverse polarity protection
	Surge protection
Protective circuit/component	Polarity protection diode
Transmission frequency	10 Hz

Output data

Output voltage range	10 V AC … 253 V AC (50/60 Hz)
Limiting continuous current	0.8 A (see derating curve)
Maximum inrush current	30 A (t = 10 ms)
Min. load current	10 mA
Leakage current	1.2 mA (in off state)
Max. load value	4.5 A²s
Peak offstate voltage	600 V (Periodic peak reverse voltage)
Voltage drop at max. limiting continuous current	≤ 1 V
Output circuit	2-conductor floating, zero voltage switch
Type of protection	RCV circuit
Protective circuit/component	RCV circuit

Connection data, input side

Connection name	Input side
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section solid	0.2 mm² … 4 mm²
Conductor cross section flexible	0.2 mm² … 2.5 mm²
Conductor cross section AWG	24 … 12
Torque	0.5 Nm
