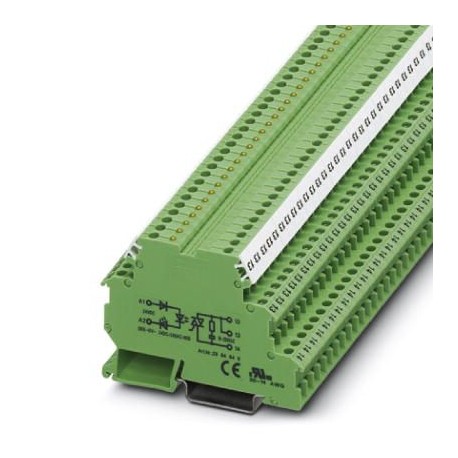

Key Commercial Data
| Orderkey | 2964636 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 441 (C-5-2017) |
| GTIN | 4017918130916 |
| Weight per Piece (excluding packing) | 20.860 g |
| Custom tariff number | 85364190 |
| Country of origin | CN (China) |
Ambient conditions
| Ambient temperature (operation) | -20 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C … 70 °C |
Input data
| Nominal input voltage UN | 12 V DC |
|---|---|
| Input voltage range in reference to UN | 0.8 … 1.2 |
| Input voltage range | 9.6 V DC … 14.4 V DC |
| Switching threshold “0” signal in reference to UN | ≤ 0.4 |
| Switching threshold “1” signal in reference to UN | ≥ 0.8 |
| Typical input current at UN | 10.5 mA |
| Typical response time | < 10 ms |
| Typical turn-off time | < 10 ms |
| Operating voltage display | Yellow LED |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Protective circuit/component | Polarity protection diode |
| Transmission frequency | 10 Hz |
Output data
| Output voltage range | 10 V AC … 253 V AC (50/60 Hz) |
|---|---|
| Limiting continuous current | 0.8 A (see derating curve) |
| Maximum inrush current | 30 A (t = 10 ms) |
| Min. load current | 10 mA |
| Leakage current | 1.2 mA (in off state) |
| Max. load value | 4.5 A2s |
| Peak offstate voltage | 600 V (Periodic peak reverse voltage) |
| Voltage drop at max. limiting continuous current | ≤ 1 V |
| Output circuit | 2-conductor floating, zero voltage switch |
| Type of protection | RCV circuit |
| Protective circuit/component | RCV circuit |
Connection data, input side
| Connection name | Input side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² … 4 mm² |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section AWG | 24 … 12 |
| Torque | 0.5 Nm |
