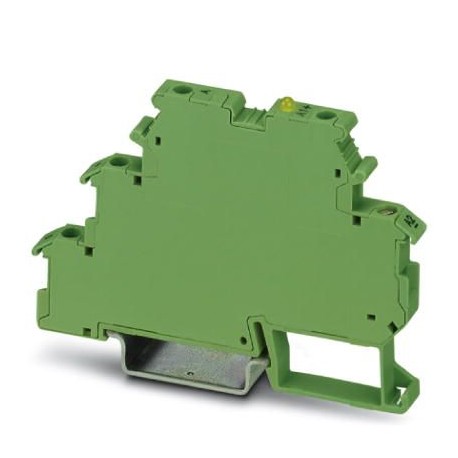

Key Commercial Data
| Orderkey | 2940207 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 440 (C-5-2017) |
| GTIN | 4017918079901 |
| Weight per Piece (excluding packing) | 20.530 g |
| Custom tariff number | 85364190 |
| Country of origin | CN (China) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 70 °C |
Input data
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range in reference to UN | 0.8 … 1.2 |
| Input voltage range | 19.2 V DC … 28.8 V DC |
| Switching threshold “0” signal in reference to UN | ≤ 0.4 |
| Switching threshold “1” signal in reference to UN | ≥ 0.8 |
| Typical input current at UN | 7 mA |
| Typical response time | 20 µs |
| Typical turn-off time | 200 µs |
| Operating voltage display | Green LED |
| Type of protection | Reverse polarity protection |
| Transmission frequency | 300 Hz |
| Power dissipation for nominal condition | 10 mW |
Output data
| Output voltage range | 3 V DC … 48 V DC |
|---|---|
| Limiting continuous current | 100 mA |
| Voltage drop at max. limiting continuous current | ≤ 0.9 V |
| Output circuit | 2-conductor floating, 3-conductor ground-referenced |
| Type of protection | Reverse polarity protection |
| Free-wheeling diode | |
| Protective circuit/component | Polarity protection diode |
| Damping diode | |
| Output resistor | approx. 22 kΩ (for 3-wire operation) |
