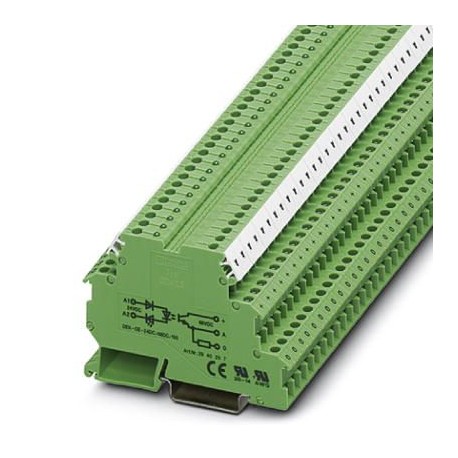

Solid-state relay terminal block

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 2940210 Danh mục: Industrial Relays Thẻ: 2940210, DEK-OE-230AC/ 48DC/100, PHOENIX_CONTACT

Mô tả

Key Commercial Data

Orderkey	2940210
Packing unit	10 pc
Catalog page	Page 440 (C-5-2017)
GTIN	4017918079918
Weight per Piece (excluding packing)	20.900 g
Custom tariff number	85364900
Country of origin	CN (China)

Dimensions

Width	6.2 mm
Height	80 mm
Depth	56 mm

Ambient conditions

Ambient temperature (operation)	-20 °C … 60 °C
Ambient temperature (storage/transport)	-20 °C … 70 °C

Input data

Nominal input voltage U_N	230 V AC
Input voltage range in reference to U_N	0.9 … 1.1
Input voltage range	207 V AC … 253 V AC
Switching threshold “0” signal, voltage	≤ 92 V
Switching threshold “0” signal in reference to U_N	≤ 0.4
Switching threshold “1” signal voltage	≥ 207 V
Switching threshold “1” signal in reference to U_N	≥ 0.9
Typical input current at U_N	2.5 mA
Typical response time	10 ms
Typical turn-off time	20 ms
Operating voltage display	Yellow LED
Type of protection	Reverse polarity protection
	Surge protection
Transmission frequency	3 Hz

Output data

Output voltage range	3 V DC … 48 V DC
Limiting continuous current	100 mA
Voltage drop at max. limiting continuous current	≤ 0.9 V
Output circuit	2-conductor floating, 3-conductor ground-referenced
Type of protection	Reverse polarity protection
	Free-wheeling diode
Protective circuit/component	Polarity protection diode
	Damping diode
Output resistor	approx. 22 kΩ (for 3-wire operation)

Connection data, input side

Connection name	Input side
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section solid	0.2 mm² … 2.5 mm²
Conductor cross section flexible	0.2 mm² … 2.5 mm²
Conductor cross section AWG	24 … 12
Torque	0.5 Nm
