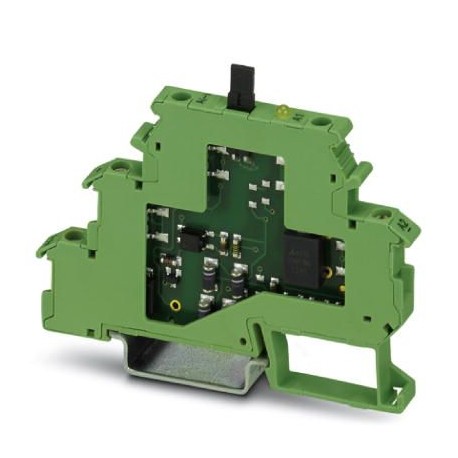

Key Commercial Data
| Orderkey | 2940294 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 71 (IF-2002) |
| GTIN | 4017918079994 |
| Weight per Piece (excluding packing) | 21.500 g |
| Custom tariff number | 85364900 |
| Country of origin | CN (China) |
Ambient conditions
| Ambient temperature (operation) | -20 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C … 70 °C |
Input data
| Nominal input voltage UN | 125 V DC |
|---|---|
| Input voltage range in reference to UN | 0.9 … 1.1 |
| Input voltage range | 112.5 V DC … 137.5 V DC |
| Switching threshold “0” signal, voltage | ≤ 50 V |
| Switching threshold “1” signal voltage | ≥ 100 V |
| Typical input current at UN | 3 mA |
| Typical response time | 40 µs (delay) |
| Typical turn-off time | 40 µs (delay) |
| Status display | Yellow LED |
| Type of protection | Reverse polarity protection |
| Protective circuit/component | Bridge rectifier |
| Transmission frequency | 30 Hz |
Output data
| Output voltage range | 3 V DC … 48 V DC |
|---|---|
| Limiting continuous current | 100 mA |
| Voltage drop at max. limiting continuous current | ≤ 0.9 V |
| Output circuit | 2-wire, floating |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Protective circuit/component | Polarity protection diode |
Connection data, input side
| Connection name | Input side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² … 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section AWG | 24 … 12 |
| Torque | 0.5 Nm |
