Key Commercial Data
| Orderkey | 2880176 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 143 (C-4-2017) |
| GTIN | 4017918962821 |
| Weight per Piece (excluding packing) | 3,110.780 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
General
| Housing material | Sheet steel |
|---|---|
| Color | beige |
| Standards for cearances and creepage distances | DIN VDE 0110-1 |
| IEC 60664-1 | |
| Overvoltage category | II |
| Degree of pollution | 2 |

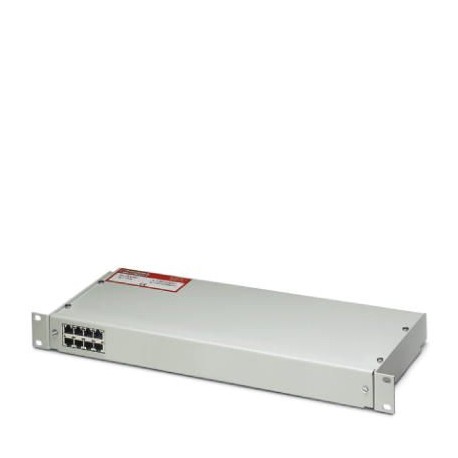

| Mounting type | 19″ rack |
| Type | 19″ rack patch module |
| Number of positions | 4 |
| Direction of action | Line-Line & Line-Signal Ground/Shield & Signal Ground/Shield-Earth Ground |
Protective circuit
| IEC test classification | C1 |
|---|---|
| C2 | |
| C3 | |
| B3 | |
| Maximum continuous voltage UC | 6 V DC (Core – core) |
| Maximum continuous voltage UC(line-earth) | 68 V DC (optional: +/- 6 V DC) |
| Rated current | 1.5 A (25 °C) |
| Operating effective current ICat UC | ≤ 1 mA |
| Residual current IPE | ≤ 1 mA (jumper 2 unplugged) |
| Nominal discharge current In(8/20) µs (line-line) | 350 A |
| Nominal discharge current In(8/20) µs (line-earth) | 350 A |
| Nominal discharge current In(8/20) µs (shield-earth) | 2.5 kA (with insulated housing) |
| Total discharge current Itotal(8/20) µs | 10 kA |
| Nominal pulse current Ian (10/1000) µs (line-line) | 100 A |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 100 A |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 20 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 30 V (J2 plugged) |
| ≤ 170 V (J2 unplugged) | |
| Output voltage limitation at 1 kV/µs (shield-earth) static | ≤ 700 V (with insulated shield) |
| Residual voltage at In(line-line) | ≤ 65 V |
| Residual voltage at In(line-earth) | ≤ 45 V (J2 ON) |
| ≤ 220 V (J2 OFF) | |
| Residual voltage at In(shield-earth) | ≤ 700 V |
| Voltage protection level Up(line-line) | ≤ 50 V (C1 – 500 V / 250 A) |
| Voltage protection level Up(line-earth) | ≤ 40 V (C1 – 500 V / 250 A (J2 ON)) |
| ≤ 180 V (C1 – 500 V / 250 A (J2 OFF)) | |
| Voltage protection level Up(shield-ground) | ≤ 800 V (with insulated housing) |
| Response time tA(line-line) | ≤ 1 ns |
| Response time tA(line-earth) | ≤ 1 ns |
| Response time tA (line-shield) | ≤ 100 ns |
| Input attenuation aE, sym. | typ. 1 dB (≤ 100 MHz) |
| Near-end crosstalk attenuation | typ. 36 dB (100 Ω system / 100 MHz) |
| Cut-off frequency fg (3 dB), sym. in 100 Ohm system | > 100 MHz |
| Capacity (line-line) | typ. 20 pF |
| Capacity (line-earth) | typ. 1 pF |
| Surge protection fault message | none |
Connection data
| Connection method | RJ45 |
|---|---|
| Connection method IN | RJ45 socket |
| Connection method OUT | RJ45 socket |
| Connection technology | Network interfaces (e.g. Ethernet, Token Ring and CDDI/FDDI) |
