RJ45 connector – CUC-V14-C1ZNI-B/R4P8:10 – 1422672

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 1422672 Danh mục: Field Device Connectors (FDC) Thẻ: 1422672, CUC-V14-C1ZNI-B/R4P8:10, PHOENIX_CONTACT

Mô tả

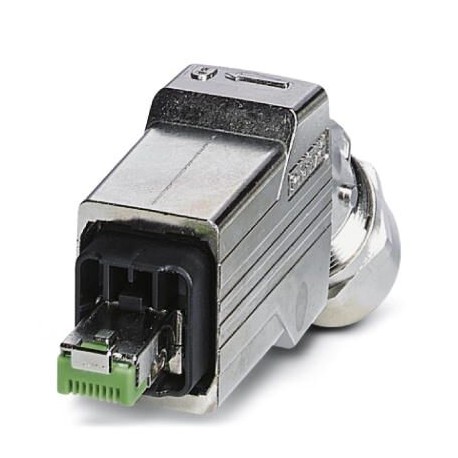

Push-pull connector (version 14), die-cast zinc, with RJ45 connector insert, 8-pos., with IDC fast connection technology, for 1 and 7-wire cores, 23 … 22 AWG, for cable diameter of 5.5 mm … 10 mm

Key Commercial Data

Orderkey	1422672
Packing unit	1
Catalog page	Page 363 (C-2-2017)
GTIN	4055626311401
Custom tariff number	85366990

Mechanical characteristics

Number of positions	8
Connection profile	RJ45
Locking type	Push Pull
Insertion/withdrawal cycles	≥ 750
Connection method	IDC fast connection
Conductor cross section	0.23 mm² … 0.32 mm² (solid)
	0.23 mm² … 0.36 mm² (flexible)
Connection cross section AWG	23 … 22 (solid)
	23 … 22 (flexible)
Max. cable diameter	5.5 mm … 10 mm
External cable diameter	5.5 mm … 10 mm
Cable outlet	angled
Degree of protection	IP65/IP67
Type	Version 14
No. of cable outlets	1
Note	This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 3.01, Order No. 2252

Ambient conditions

Ambient temperature (operation)	-40 °C … 70 °C
Ambient temperature (assembly)	-10 °C … 40 °C
Ambient temperature (storage/transport)	-40 °C … 70 °C

Material data

Housing material	Zinc die-cast
Housing surface material	Nickel-plated
Seal material	NBR
Height	50 mm

Electrical characteristics

Rated voltage (III/3)	72 V (DC)
Rated current	1.75 A
Frequency range	to 100 MHz
Transmission characteristics (category)	CAT5 (IEC 11801:2002)

Environmental Product Compliance

REACh SVHC
	Lead 7439-92-1
China RoHS	Environmentally Friendly Use Period = 50
	For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration”
