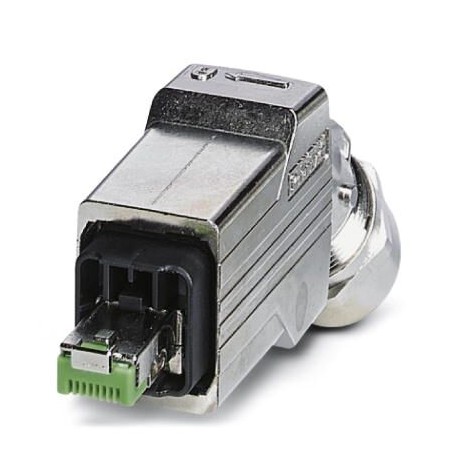

Push-pull connector (version 14), die-cast zinc, with RJ45 connector insert, 8-pos., with IDC fast connection technology, for 1 and 7-wire cores, 26 … 24 AWG, for cable diameter of 5.5 mm … 10 mm
Key Commercial Data
| Orderkey | 1422677 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 363 (C-2-2017) |
| GTIN | 4055626311395 |
| Custom tariff number | 85366990 |
Mechanical characteristics
| Number of positions | 8 |
|---|---|
| Connection profile | RJ45 |
| Locking type | Push Pull |
| Insertion/withdrawal cycles | ≥ 750 |
| Connection method | IDC fast connection |
| Conductor cross section | 0.14 mm² … 0.23 mm² (solid) |
| 0.14 mm² … 0.25 mm² (flexible) | |
| Connection cross section AWG | 26 … 24 (solid) |
| 26 … 24 (flexible) | |
| Max. cable diameter | 5.5 mm … 10 mm |
| External cable diameter | 5.5 mm … 10 mm |
| Cable outlet | angled |
| Degree of protection | IP65/IP67 |
| Type | Version 14 |
| No. of cable outlets | 1 |
| Note | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 3.01, Order No. 2252 |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 70 °C |
|---|---|
| Ambient temperature (assembly) | -10 °C … 40 °C |
| Ambient temperature (storage/transport) | -40 °C … 70 °C |
Material data
| Housing material | Zinc die-cast |
|---|---|
| Housing surface material | Nickel-plated |
| Seal material | NBR |
| Height | 50 mm |
Electrical characteristics
| Rated voltage (III/3) | 72 V (DC) |
|---|---|
| Rated current | 1.75 A |
| Frequency range | to 100 MHz |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
