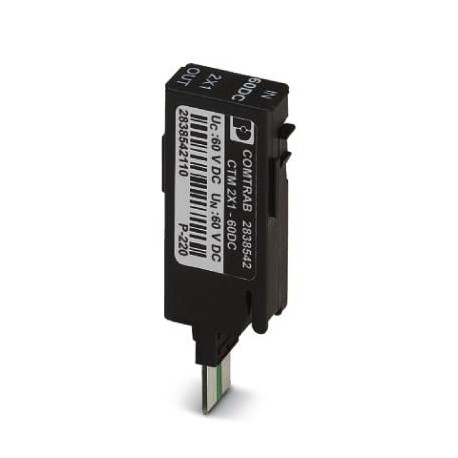

Key Commercial Data
| Orderkey | 2838542 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 119 (C-4-2017) |
| GTIN | 4017918819576 |
| Weight per Piece (excluding packing) | 10.580 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C … 75 °C |
|---|---|
| Altitude | ≤ 2000 m (amsl (above mean sea level)) |
| Degree of protection | IP20 |
General
| Housing material | PA 6.6 |
|---|---|
| Flammability rating according to UL 94 | V-0 |
| Color | jet black RAL 9005 |
| Overvoltage category | II |
| Degree of pollution | 2 |
| Mounting type | On CT-TERMIBLOCK and LSA-PLUS disconnect strip |
| Type | LSA-PLUS module |
| Direction of action | Line-Line & Line-Earth Ground |
| Arrester can be tested with CHECKMASTER from software version: | From SW rev. 1.10 |
Protective circuit
| IEC test classification | B2 |
|---|---|
| C1 | |
| C2 | |
| C3 | |
| D1 | |
| Nominal voltage UN | 60 V DC |
| Maximum continuous voltage UC | 60 V DC |
| 50 V AC | |
| Rated current | 380 mA AC (25 °C) |
| 150 mA DC (25 °C) | |
| Operating effective current ICat UC | ≤ 70 µA |
| Residual current IPE | ≤ 2 µA |
| Nominal discharge current In(8/20) µs (line-earth) | 5 kA |
| Pulse discharge current Iimp(10/350) µs (line-earth) | 1 kA |
| Total discharge current Itotal(8/20) µs | 10 kA |
| Total discharge current Itotal(10/350) µs | 2.5 kA |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 100 A |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 160 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 160 V |
| Residual voltage at In(line-earth) | ≤ 95 V |
| Residual voltage with Ian (10/1000) µs (line-earth) | ≤ 16 V |
| Voltage protection level Up(line-earth) | ≤ 240 V (C2 – 10 kV / 5 kA) |
| ≤ 150 V (C3 – 100 A) | |
| Voltage protection level Upstatic (line-earth) | ≤ 85 V (C2 – 10 kV / 5 kA) |
| ≤ 16 V (C3 – 100 A) | |
| Response time tA(line-earth) | ≤ 1 ns |
| Input attenuation aE, asym. | typ. 0.3 dB (≤ 500 kHz / 100 Ω) |
| Cut-off frequency fg (3 dB), asym. (PE) in 100 Ohm system | typ. 2 MHz |
| Capacity (line-earth) | typ. 1 nF |
| Resistance in series | 3.3 Ω 20 % |
| Surge protection fault message | none |
| Impulse durability (line-earth) | B2 – 4 kV/100 A |
| C2 – 10 kV/5 kA | |
| C3 – 100 A | |
| D1 – 1 kA | |
| Alternating current carrying capacity (line-earth) | 5 A – 1 s |
Connection data
| Connection method | can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips |
|---|---|
| Connection method IN | COMTRAB plug-in system |
| Connection method OUT | COMTRAB plug-in system |
| Connection technology | LSA-PLUS |
