Key Commercial Data
| Orderkey | 2830498 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 105 (C-6-2013) |
| GTIN | 4017918106553 |
| Weight per Piece (excluding packing) | 112.400 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C |
|---|---|
| Altitude | ≤ 2000 mm (amsl (above mean sea level)) |
| Degree of protection | IP20 |
General
| Housing material | PBT |
|---|---|
| Flammability rating according to UL 94 | V-0 |
| Color | jet black RAL 9005 |
| Standards for cearances and creepage distances | VDE 0110-1 |
| IEC 60664 | |
| Mounting type | On CT-TERMIBLOCK and LSA-PLUS disconnect strip |

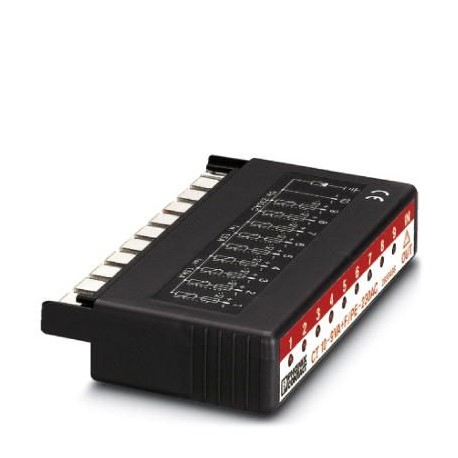

| Type | LSA-PLUS module |
| Direction of action | Line-Line & Line-Earth Ground |
| Arrester can be tested with CHECKMASTER from software version: | From SW rev. 1.00 |
Protective circuit
| IEC test classification | C1 |
|---|---|
| C3 | |
| Nominal voltage UN | 250 V DC |
| 230 V AC | |
| Maximum continuous voltage UC | 275 V DC |
| 275 V AC | |
| Rated current | 1.5 A AC (per path) |
| 200 mA DC (per path) | |
| Operating effective current ICat UC | ≤ 1.5 mA AC (per path) |
| ≤ 2 mA DC (per path) | |
| Residual current IPE | ≤ 1 µA |
| Nominal discharge current In(8/20) µs (line-earth) | 1.5 kA |
| Nominal discharge current In(8/20) µs (core-signal ground) | 1.5 kA |
| Nominal discharge current In(8/20) µs (signalground-earth) | 5 kA |
| Total discharge current Itotal(8/20) µs | 5 kA |
| Max. discharge current Imax(8/20) µs maximum (line-earth) | 5 kA (10-PE) |
| Max. discharge current Imax(8/20) µs maximum (line-signalground) | 3 kA |
| Residual voltage at In(line-earth) | ≤ 1.4 kV |
| Residual voltage at In(line-signalground) | ≤ 1.1 kV |
| Fixed cable length | 10 m |
| Voltage protection level Up(line-earth) | ≤ 1.4 kV (10-PE) |
| Voltage protection level Up(line-signalground) | ≤ 1.1 kV |
| Response time tA(line-line) | ≤ 25 ns |
| Response time tA (line-signalground) | ≤ 25 ns |
| Response time tA(line-earth) | ≤ 100 ns |
| Frequency range | 50 Hz … 60 Hz |
| Capacity (line-signalground) | typ. 320 pF |
| Capacity (line-earth) | typ. 2 pF (10-PE) |
| Surge protection fault message | none |
| Max. required back-up fuse | 1.5 A AC (gL) |
| 200 mA DC (F) | |
| Impulse durability (line-earth) | C2 – 3 kV/1.5 kA |
| Impulse durability (line-signalground) | C2 – 3 kV/1.5 kA |
| Impulse durability (signalground-earth) | C2 – 10 kV/5 kA |
Connection data
| Connection method | can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips |
|---|---|
| Connection method IN | COMTRAB plug-in system |
| Connection method OUT | COMTRAB plug-in system |
