Key Commercial Data
| Orderkey | 2701787 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 497 (C-6-2017) |
| GTIN | 4046356863780 |
| Weight per Piece (excluding packing) | 3,860.000 g |
| Custom tariff number | 85308000 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C … 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C … 85 °C |
| Air pressure (operation) | 70 hPa … 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 hPa … 106 kPa (up to 3000 m above sea level) |
| Degree of protection | IP65/IP67, when installed |
General
| Assembly instructions | Use of stainless steel fittings (corrosion-resistant) |
|---|---|
| Net weight | 3860 g |
| Diagnostics messages | LEDs; temperature, current, voltage, etc. Yes |
| Mains failure, communication failure Failsafe | |
| Design | Operating hours counter |
| Inrush current | max. 36 A (µ-sec-pulse) |
Power supply for module electronics
| Connection method | M17 hybrid connectors with SPEEDCON locking system |
|---|---|
| Number of positions | 8 |
| Supply voltage | 24 V DC (DC) |
| Current consumption | max. 2.51 A (yellow LEDs) |
| Power consumption | max. 70 W (yellow LEDs) |

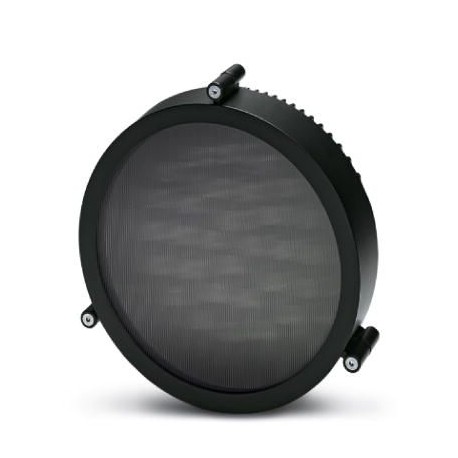

Light properties
| Source of light type | LED |
|---|---|
| Number of LEDs | 30 (according to IALA recommendation E200-1 and CIE 1931) |
| Service life, lighting appliance | 50000 h |
| Light color | IALA yellow, optimum |
| Color temperature / wavelength | 588…592 nm |
| Color class | C3 (EN 12966) |
| Luminance | L3 (EN 12966) |
| Luminance ratio | R3 (EN 12966) |
| Phantom light class | 5 (EN 12368) |
| Luminous intensity | 11394 Cd |
| Can be dimmed | Yes, in 256 steps |
| Emission angle | 8° x 30° |
