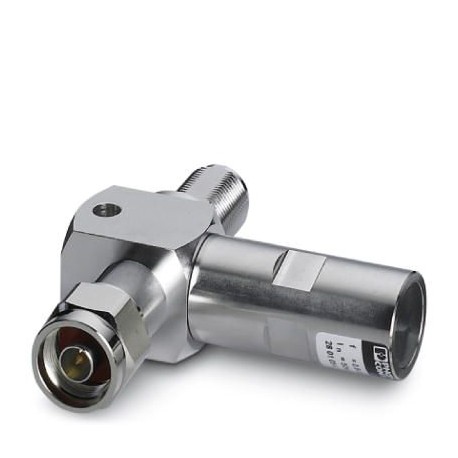

Key Commercial Data
| Orderkey | 2801056 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 178 (C-4-2017) |
| GTIN | 4046356678247 |
| Weight per Piece (excluding packing) | 260.000 g |
| Custom tariff number | 85363010 |
| Country of origin | CN (China) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C |
|---|---|
| Altitude | 2000 m |
| Degree of protection | IP68 |
General
| Housing material | HPb59-1 |
|---|---|
| Color | nickel |
| Standards for cearances and creepage distances | IEC 60664-1 |
| Mounting type | Connection-specific intermediate plugging |
| Type | Attachment plug |
| Number of positions | 1 |
| Direction of action | Line-Shield/Earth Ground |
Protective circuit
| IEC test classification | C2 |
|---|---|
| C3 | |
| D1 | |
| VDE requirement class | C2 |
| C3 | |
| D1 | |
| Nominal current IN | 5 A (25 °C) |
| Nominal discharge current In(8/20) µs (line-earth) | 50 kA |
| Nominal discharge current In(8/20) µs (line-shield) | 50 kA |
| Total surge current (8/20) µs | 60 kA |
| Total surge current (10/350) µs | 20 kA |
| Max. discharge current Imax(8/20) µs maximum (line-earth) | 60 kA |
| Max. discharge current Imax(8/20) µs maximum (line-shield) | 60 kA |
| Impulse discharge current (10/350) µs, peak value limp | ≤ 20 kA |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 1 V |
| Output voltage limitation at 1 kV/µs (line-shield) spike | ≤ 1 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 1 V |
| Voltage protection level Up(line-earth) | ≤ 15 V (6 kV / 3 kA) |
| ≤ 5 V (C1 – 1 kV/500 A) | |
| ≤ 25 V (C2 – 10 kV / 5 kA) | |
| Voltage protection level Up(line-shield) | ≤ 25 V (C2 – 10 kV / 5 kA) |
| ≤ 5 V (C1 – 1 kV/500 A) | |
| ≤ 15 V (6 kV / 3 kA) | |
| Input attenuation aE, asym. | ≤ 0.2 dB (50 Ω) |
| Frequency range | 0.8 GHz … 2.25 GHz |
| Standing wave ratio SWR in a 50 Ω system | typ. 1.2 |
| max. 1.25 | |
| Permissible HF power Pmaxat VSWR = xx (50 ohm system) | ≤ 500 W |
| ≤ 4 kW (peak) | |
| Surge protection fault message | none |
| Impulse durability (line-earth) | C1 – 1 kV/500 A |
| C2 – 10 kV/5 kA | |
| D1 – 2.5 kA |
Connection data
| Connection method | N connector 50 Ω |
|---|---|
| Connection method IN | N connector, male |
| Connection method OUT | N connector, female |
