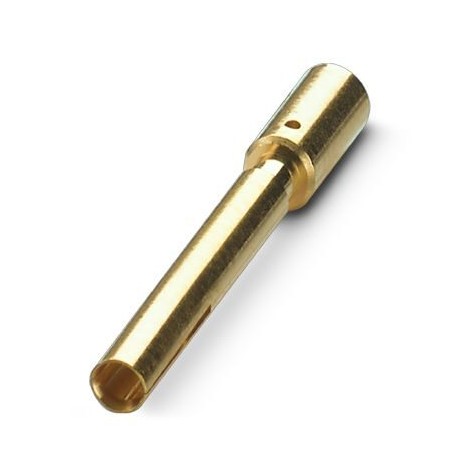

CC1,5-TS-2,10F K/L AU 1029396 PHOENIX CONTACT Crimp contact, contact diameter: 1.5 mm, turned, Socket, c..

CC1,5-TS-2,10F K/L AU 1029396 PHOENIX CONTACT Crimp contact, contact diameter: 1.5 mm, turned, Socket, c..

CC1,5-TS-2,10F K/L AU 1029396 PHOENIX CONTACT Crimp contact, contact diameter: 1.5 mm, turned, Socket, c..

Crimp contact, contact diameter: 1.5 mm, turned, Socket, contact material: CuZn, contact surface: Ni/Au, connection cross section: 1.5 mm² … 1.5 mm² AWG 14

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 1029396 Danh mục: QUICKON Installation System (QPD) Thẻ: 1029396, 10F K/L AU, 5-TS-2, CC1, PHOENIX_CONTACT

Mô tả

Key Commercial Data

Orderkey	1029396
Packing unit	1
Catalog page	Page 278 (C-2-2019)
GTIN	4055626531403
Custom tariff number	85366990

Drawings
Mechanical characteristics
Material data
Classifications

Ambient conditions
General
Environmental Product Compliance

Drawings


Dimensional drawing Crimp contact, diameter: 1.5 mm

Ambient conditions

Ambient temperature (operation)	-40 °C … 85 °C

Mechanical characteristics

Conductor cross section	1.5 mm² … 1.5 mm² (flexible)
Connection cross section AWG	14 (flexible)
Contact diameter	1.5 mm
Insertion/withdrawal cycles	≥ 100

General

Type	Individual female contact
Connection method	Crimp connection
Contact type	turned

Material data

Contact material	CuZn
Contact surface material	Ni/Au

Environmental Product Compliance

REACh SVHC	Lead 7439-92-1
China RoHS	Environmentally Friendly Use Period = 50
	For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration”

Classifications

[email protected]

[email protected] 5.1	27261200
[email protected] 6.0	27261200
[email protected] 7.0	27440204
[email protected] 8.0	27440204
[email protected] 9.0	27440204

ETIM

ETIM 5.0	EC000796
ETIM 6.0	EC000796
ETIM 7.0	EC000796

Drawings
Mechanical characteristics
Material data
Classifications

Ambient conditions
General
Environmental Product Compliance

Drawings


Dimensional drawing Crimp contact, diameter: 1.5 mm

Mechanical characteristics

Conductor cross section	1.5 mm² … 1.5 mm² (flexible)
Connection cross section AWG	14 (flexible)
Contact diameter	1.5 mm
Insertion/withdrawal cycles	≥ 100
