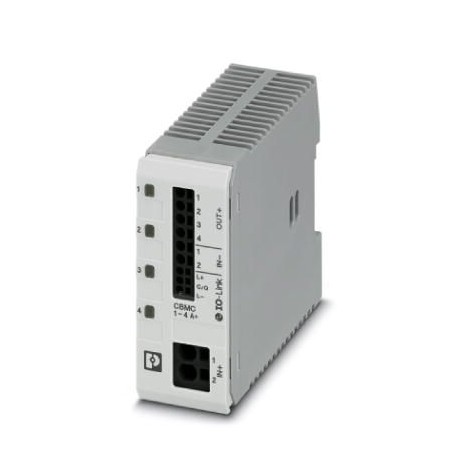

Key Commercial Data
| Orderkey | 2910410 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626448558 |
| Weight per Piece (excluding packing) | 139.000 g |
| Custom tariff number | 85363030 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 70 °C |
| Humidity test | 96 h, 95 % RH, 40 °C |
| Altitude | ≤ 2000 m (amsl (above mean sea level)) |
| Shock (operation) | 30g (IEC 60068-2-27, Test Ea) |
| Vibration (operation) | 10 Hz … 57.6 Hz (Amplitude ±0.35 mm; in accordance with IEC 60068-2-6, Test Fc) |
| 57.6 Hz … 150 Hz (Acceleration 5g; in accordance with IEC 60068-2-6, Test Fc) | |
| Degree of protection | IP20 |
General
| Flammability rating according to UL 94 | V-0 |
|---|---|
| Mounting type | DIN rail: 35 mm |
| Color | light grey RAL 7035 |
| Number of positions | 4 |
| Protection class | III |
| Type | DIN rail module, one-piece |
Electrical data
| Fuse type | electronic |
|---|---|
| Rated surge voltage | 0.5 kV |
| Operating voltage | 18 V DC … 30 V DC |
| Rated voltage | 24 V DC |
| Rated current IN | max. 16 A DC (IN+) |
| max. 40 A DC (per terminal position when bridging additional devices via IN+) | |
| 1 / 2 / 3 / 4 A DC (adjustable per output channel) | |
| Measuring tolerance I | ± 15 % |
| Feedback resistance | max. 35 V DC |
| Fail-safe element | 15 A DC (per output channel) |
| Efficiency | > 99 % |
| Closed circuit current I0 | typ. 33 mA |
| Power dissipation | typ. 0.8 W (No-load operation) |
| < 4 W (Nominal operation) | |
| Module initialization time | 1.6 s |
| Waiting time after switch off of a channel | 5 s (at overload / short circuit) |
| Tripping method | E (electronic) |
| Required backup fuse | not required, integrated failsafe element |
| Dielectric strength | max. 35 V DC (Load circuit) |
| MTBF (IEC 61709, SN 29500) | 6896552 h (at 25°C with 21% load) |
| 2597403 h (at 40°C with 34.25% load) | |
| 443066 h (at 35°C with 100% load) | |
| Shutdown time load circuit | ≤ 10 ms (for short circuit > 2.0 x IN) |
| 1 s (1.2 … 2.0 x IN) | |
| Undervoltage shutdown load circuit | ≤ 17.8 V DC (active) |
| ≥ 18.8 V DC (inactive) | |
| Surge voltage shutdown load circuit | ≥ 30.5 V DC (active) |
| ≤ 29.5 V DC (inactive) | |
| Max. capacitive load load circuit | 30000 µF (Depending on the current setting and the short-circuit current available) |
Interface
| Interface type | IO-Link |
|---|---|
| Specification | V1.1 |
| Reverse polarity protection | Yes |
| Transmission speed | 230.4 kbps (COM3) |
| Cycle Time | min. 40 ms |
| Amount of process data | 8 Byte (Input data) |
| 3 Byte (Output data) | |
| Nominal voltage for I/O supply | 24 V DC |
| Current consumption | max. 30 mA (IO-Link L+) |
| IO-Link Vendor ID | 176dec, 00 B0hex |
| IO-Link Device ID | 393520dec, 06 01 30hex |
