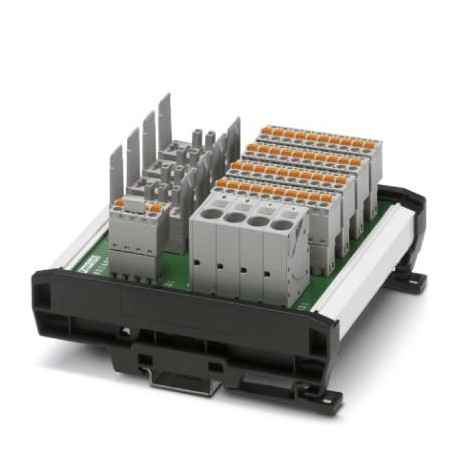

Key Commercial Data
| Orderkey | 2801481 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 262 (C-6-2013) |
| GTIN | 4046356782319 |
| Weight per Piece (excluding packing) | 302.200 g |
| Custom tariff number | 85340090 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -30 °C … 60 °C (At max. 45 A, see derating) |
|---|---|
| Ambient temperature (storage/transport) | -30 °C … 80 °C |
| Degree of protection | IP20 (Terminal blocks and fuse holders) |
| IP00 (PCB) |
General
| Flammability rating according to UL 94 | V0 |
|---|---|
| Mounting type | DIN rail: 35 mm |
| Number of positions | 4 |
| Overvoltage category_GRP | II |
| Degree of pollution | 2 |
| Type | DIN rail module, two-section, divisible |
Electrical data
| Rated voltage main circuit | 24 V DC |
|---|---|
| Rated current main circuit | 48 A DC (total) |
| 12 A DC (per channel) | |
| Rated voltage remote indication circuit | 24 V DC |
| Rated current remote indication circuit | 1 A DC |
| Rated insulation voltage Ui | 50 V DC |
| Rated surge voltage | 0.5 kV |
| Short circuit stability | 600 A (conditional according to DIN EN 50178) |
| Power dissipation | 4.1 W (with even load on outputs with In) |
| Insertion/withdrawal cycles | 50 |
Connection data
| Connection name | Supply X21 |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 18 mm |
| Conductor cross section flexible min. | 0.75 mm² |
| Conductor cross section flexible max. | 16 mm² |
| Conductor cross section solid min. | 0.75 mm² |
| Conductor cross section solid max. | 16 mm² |
| Conductor cross section AWG min. | 20 |
| Conductor cross section AWG max. | 4 |
| Connection name | Outputs X1 … X4 |
| Connection method | Push-in connection |
| Stripping length | 10 mm |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Connection name | Remote signaling X31 |
| Connection method | Push-in connection |
| Stripping length | 10 mm |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
