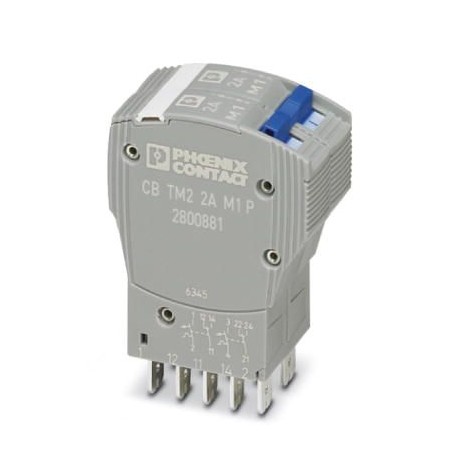

Key Commercial Data
| Orderkey | 2800881 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 329 (C-4-2017) |
| GTIN | 4046356690423 |
| Weight per Piece (excluding packing) | 70.600 g |
| Custom tariff number | 85362010 |
| Country of origin | ID (Indonesia) |
Ambient conditions
| Ambient temperature (operation) | -30 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Humidity test | 240 h, 95 % RH, 40 °C |
| Shock (operation) | 30g (IEC 60068-2-27, Test Ea) |
| Vibration (operation) | 8g (IEC 60068-2-6, Test Fc) |
| Degree of protection | IP30 (Actuation area) |
General
| Installation instructions | When mounted in rows, the nominal device current can be limited to just 80% or must be overdimensioned accordingly. |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Mounting type | on base element |
| Color | gray |
| Number of positions | 2 |
| Insulating material group | II |
| Degree of pollution | 2 |
| Type | Male |
Electrical data
| Fuse type | normal blow |
|---|---|
| Rated surge voltage | 2.5 kV (Increased insulation in actuation area) |
| Rated voltage | 80 V DC (IEC 60934) |
| 80 V DC (UL 1077) | |
| 80 V DC (UL 508 – with plug-in base) | |
| 240 V AC (Ue according to IEC 60934) | |
| 277 V AC (UL 1077) | |
| 277 V AC (UL 508 – with plug-in base) | |
| Rated current IN | 2 A (IEC 60934) |
| 2 A AC (inductive load according to UL 1077) | |
| 2 A DC (low-induction load according to UL 1077) | |
| 2 A AC (inductive load according to UL 508 – with plug-in base) | |
| 2 A DC (low-induction load according to UL 508 – with plug-in base) | |
| Rated insulation voltage Ui | 277 V AC (UL 1077) |
| 250 V AC (IEC 60934) | |
| Power dissipation | 1.2 W (in nominal operation per channel) |
| Device resistance | 300 mΩ |
| Insulation resistance Riso | > 100 MΩ (500 V DC) |
| Type of actuation | S type |
| Tripping method | TM (thermomagnetic) |
| Tripping level | Trip-free mechanism (positive) |
| Rated short-circuit switching capacity Icn | 400 A (240 V AC) |
| 600 A (80 V DC) | |
| Required backup fuse | ≥ 15 A (I > Icn) |
| Short-circuit switching capacity Ik | 1000 A AC (277 V AC) |
| 1000 A DC (50 V DC) | |
| Dielectric strength | 3000 V AC (Actuation area) |
| 1500 V AC (Main to auxiliary circuit) | |
| 1500 V AC (Open main circuit) | |
| 1000 V AC (Open auxiliary circuit) | |
| 1500 V AC (Position to position) | |
| Voltage drop | 0.64 V (at 1 x In) |
| Switching cycles, max. | 6000 (240 V AC/1 x In) |
| 3000 (80 V DC/1 x In) | |
| Auxiliary circuit | 277 V AC / 0.5 A (Low-induction) |
| 277 V AC / 1 A (Low-induction, maximum of 2000 cycles) | |
| 50 V DC / 1 A (Low-induction) | |
| Minimum auxiliary contact operating voltage | 10 V |
| Maximum auxiliary contact operating voltage | 240 V |
| 240 V | |
| Minimum auxiliary contact operating current | 10 mA |
| Maximum auxiliary contact operating current | 1 A |
Standards and Regulations
| Standards/specifications | EN 60934 |
|---|---|
| UL 1077 UL/C-UL recognized | |
| UL 508 UL/C – UL listed | |
| CSA 22.2 No. 235-04 |
