Key Commercial Data

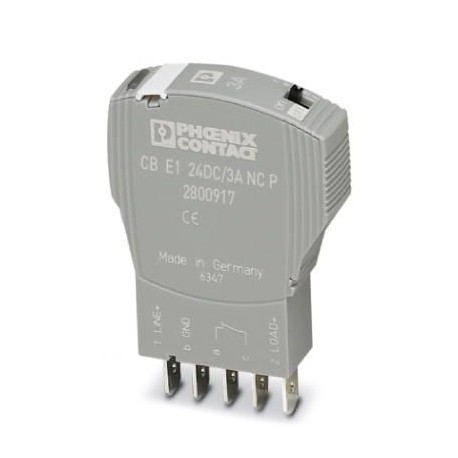

| Orderkey | 2800917 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 323 (C-4-2017) |
| GTIN | 4046356690669 |
| Weight per Piece (excluding packing) | 36.000 g |
| Custom tariff number | 85362010 |
| Country of origin | DE (Germany) |
Dimensions
| Height | 45 mm |
|---|---|
| Width | 12.3 mm |
| Depth | 52 mm |
| Complete module height | 90 mm |
| Complete module width | 12.3 mm |
| Complete module depth | 77.3 mm |
Ambient conditions
| Ambient temperature (operation) | -25 °C … 50 °C (non-condensing) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 70 °C |
| Humidity test | 96 h, 95 % RH, 40 °C |
| Vibration (operation) | 3g (In accordance with IEC 60068-2-6, Test Fc) |
| Degree of protection | IP30 (Actuation area) |
General
| Installation instructions | When mounted in rows without convection cooling, the nominal device current should only be led to a maximum of 80% due to the thermal effect during continuous operation (100% operating factor). Special precautionary measures must be taken in systems or machines, to prevent components from restarting (e.g., use of a safety PLC). Parallel connection of multiple circuit breakers is not permitted. |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Mounting type | on base element |
| Color | gray |
| Number of positions | 1 |
| Degree of pollution | 2 |
| Type | Male |
Electrical data
| Fuse type | electronic |
|---|---|
| Rated surge voltage | 0.5 kV |
| Operating voltage | 24 V DC |
| 18 V DC … 30 V DC | |
| Nominal current IN | 3 A |
| Active current limitation | typ. 1.25 x IN |
| Closed circuit current I0 | typ. 8 mA (When switched on) |
| typ. 17 mA (With alarm output) | |
| Power dissipation | 0.77 W (Nominal operation) |
| Temperature derating | 3 A (at 50 °C) |
| Tripping method | E (electronic) |
| Required backup fuse | not required, integrated failsafe element |
| Dielectric strength | max. 30 V DC (Load circuit) |
| Voltage drop | 120 mV (at IN) |
| Shutdown time load circuit | 300 ms (see time/current characteristic curve) |
| Undervoltage shutdown load circuit | < 14 V (typ. OFF) |
| > 17 V (typ. ON) | |
| Max. capacitive load load circuit | 20000 µF |
| Auxiliary type of contact | floating signal contact |
| Minimum auxiliary contact operating voltage | 10 V DC |
| Maximum auxiliary contact operating voltage | 30 V DC |
| Minimum auxiliary contact operating current | 10 mA |
| Maximum auxiliary contact operating current | 0.5 A |
Standards and Regulations
| Standards/specifications | UL 2367 UL recognized |
|---|---|
| UL 508 UL/C-UL listed | |
| EMV EN 61000-6-3 Interference emission | |
| EMV EN 61000-6-2 Noise immunity |
