CABLE-KS40/KS40/3,0M/YUC/CS 2904426 PHOENIX CONTACT Assembled round cable with two molded 40-pos. socket str..
CABLE-KS40/KS40/3,0M/YUC/CS 2904426 PHOENIX CONTACT Assembled round cable with two molded 40-pos. socket str..

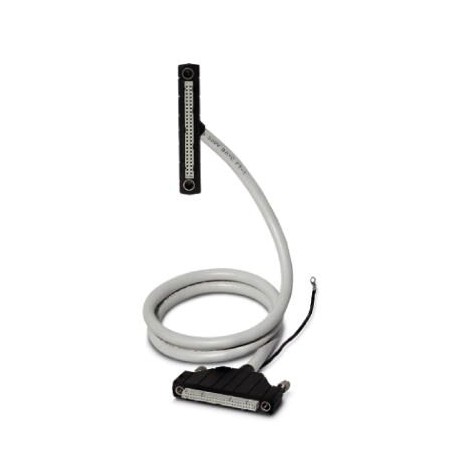

Assembled round cable with two molded 40-pos. socket strips (1:1 connection). Cable length: 3.0 m
Liên hệ:
Key Commercial Data
| Orderkey | 2904426 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626062198 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Note
| Trade restriction | The products are offered exclusively for export outside the EU and the European Economic Area. |
|---|
General
| Max. permissible operating voltage | 30 V DC |
|---|---|
| Max. current carrying capacity per path | 500 mA (up to 70°C ambient temperature) |
| Length of cable | 3 m |
| External cable diameter | 11 mm |
| Single wire, cross section | 0.14 mm² |
| Single wire, cross section [AWG] | 26 |
| Single wire, number of litz wires | 7 |
| Single wire, material | Cu tin-plated |
| Shielding | yes |
| Outer sheath, material | PVC |
| External sheath, color | gray RAL 7035 |
Environmental conditions
| Ambient temperature (operation) | -20 °C … 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C … 70 °C |
| Flame resistance | IEC 60332-3-22 |
| Resistance to oil | DIN VDE 0472 Part 803, test type B |
| Gasoline resistance | against occasional splashes |
Connector 1
| Connection name | Field level |
|---|---|
| Connection method | Yokogawa, KS compatible |
| Torque | 0.5 Nm (Screw connection) |
| Number of connections | 1 |
| Number of positions | 40 |
Connector 2
| Connection name | Controller level |
|---|---|
| Connection method | Yokogawa, I/O cards compatible |
| Torque | 0.5 Nm (Screw connection) |
| Number of connections | 1 |
| Number of positions | 40 |
Standards and Regulations
| Flame resistance | IEC 60332-3-22 |
|---|---|
| Resistance to oil | DIN VDE 0472 Part 803, test type B |
| Gasoline resistance | against occasional splashes |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
[email protected]
| [email protected] 4.0 | 27060300 |
|---|---|
| [email protected] 4.1 | 27060300 |
| [email protected] 5.0 | 27242200 |
| [email protected] 5.1 | 27242200 |
| [email protected] 6.0 | 27249200 |
| [email protected] 7.0 | 27249205 |
| [email protected] 8.0 | 27249205 |
| [email protected] 9.0 | 27242220 |
ETIM
| ETIM 2.0 | EC000237 |
|---|---|
| ETIM 3.0 | EC000237 |
| ETIM 4.0 | EC000237 |
| ETIM 5.0 | EC000237 |
| ETIM 6.0 | EC000237 |
| ETIM 7.0 | EC000237 |
Note
| Trade restriction | The products are offered exclusively for export outside the EU and the European Economic Area. |
|---|
