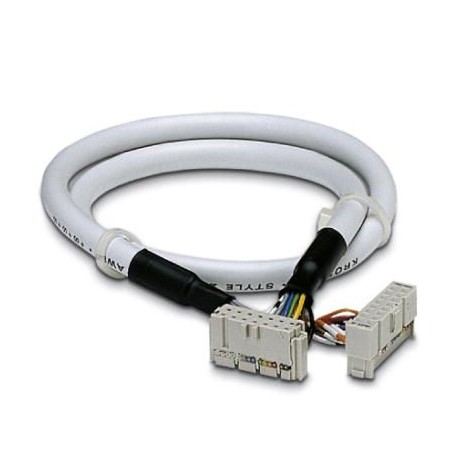

Key Commercial Data
| Orderkey | 2900432 |
|---|---|
| Packing unit | 1 |
| GTIN | 4046356505413 |
| Custom tariff number | 85444290 |
General
| Nominal voltage UN | ≤ 25 V AC |
|---|---|
| ≤ 60 V DC | |
| Max. current carrying capacity per path | 1 A |
| Max. conductor resistance | ≤ 145 Ω/km (At an ambient temperature of 20°C) |
| Length of cable | 2.5 m |
| Single wire, cross section | 0.14 mm² |
| Single wire, cross section [AWG] | 26 |
| Conductor construction: Number of litz wires: | 7 |
| Single wire, material | Cu tin-plated |
| External diameter | 6.4 mm |
| Cable, preassembly | Insulation displacement, IEC 60352-4/DIN EN 60352-4 |
| Shielding | no |
| Outer sheath, material | PVC |
| External sheath, color | gray RAL 7035 |
| Degree of protection | IP00 |
| Degree of protection at installation location | IP54 |
Environmental conditions
| Ambient temperature (operation) | -20 °C … 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C … 70 °C |
| Flame resistance | IEC 60332-1-2 |
| IEC 60332-3-22 | |
| UL VW-1 | |
| CSA FT-1 | |
| Resistance to oil | against occasional splashes |
| Gasoline resistance | against occasional splashes |
Connector 1
| Connection name | Field level |
|---|---|
| Connection method | IDC/FLK socket strip |
| Number of connections | 1 |
| Number of positions | 14 |
| Pitch | 2.54 mm |
Connector 2
| Connection name | Controller level |
|---|---|
| Connection method | IDC/FLK socket strip |
| Number of connections | 1 |
| Number of positions | 16 |
| Pitch | 2.54 mm |
Standards and Regulations
| Standard designation | Air clearances and creepage distances |
|---|---|
| Standards/regulations | DIN EN 50178: 1998-04 |
| Flame resistance | IEC 60332-1-2 |
| IEC 60332-3-22 | |
| UL VW-1 | |
| CSA FT-1 | |
| Resistance to oil | against occasional splashes |
| Gasoline resistance | against occasional splashes |
