Key Commercial Data
| Orderkey | 2304238 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 490 (C-5-2017) |
| GTIN | 4017918929855 |
| Weight per Piece (excluding packing) | 217.300 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
General
| Nominal voltage UN | < 50 V AC |
|---|---|
| 60 V DC | |
| Max. current carrying capacity per path | 1 A |
| Max. conductor resistance | 0.16 Ω/m |
| Length of cable | 2 m |
| Single wire, cross section | 0.14 mm² |
| Single wire, cross section [AWG] | 26 |
| Conductor construction: Number of litz wires: | 7 |
| Single wire, material | Cu tin-plated |
| External diameter | 6.3 mm |
| Shielding | no |
Environmental conditions
| Ambient temperature (operation) | -20 °C … 50 °C |
|---|---|
| Flame resistance | IEC 60332-1 |
| DIN VDE 0482 Part 332-1 |

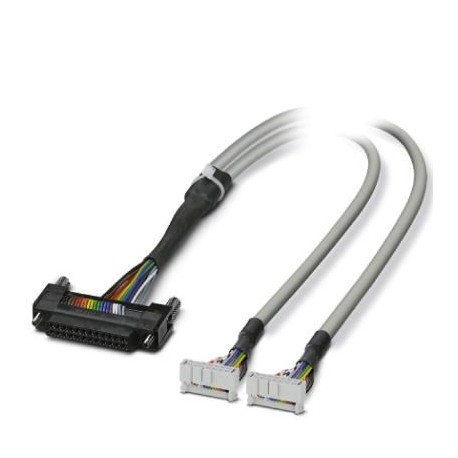

Connector 1
| Connection name | Field level |
|---|---|
| Connection method | IDC/FLK socket strip |
| Number of connections | 2 |
| Number of positions | 14 |
| Pitch | 2.54 mm |
Connector 2
| Connection name | Controller level |
|---|---|
| Connection method | Fujitsu connector |
| Number of connections | 1 |
| Number of positions | 24 |
Supported controller
| Controller | OMRON CS1/C200H |
|---|---|
| – suitable I/O card | OD215 |
| MD115 | |
| MD215 | |
| Controller | OMRON C200H |
| – suitable I/O card | OD215 |
| MD115 | |
| MD215 |
