CABLE-D50SUB/B/B/HF/S/ 3,0M 1066674 PHOENIX CONTACT Assembled, shielded, halogen-free round cable connection..
CABLE-D50SUB/B/B/HF/S/ 3,0M 1066674 PHOENIX CONTACT Assembled, shielded, halogen-free round cable connection..

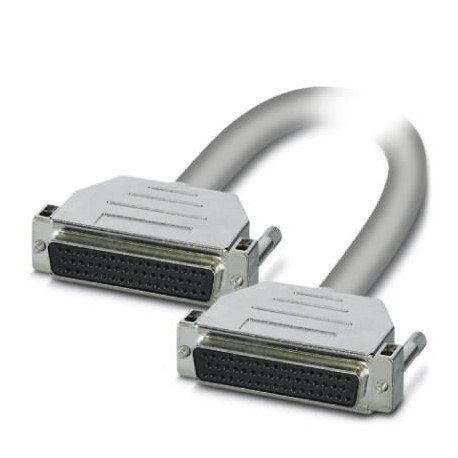

Assembled, shielded, halogen-free round cable; connection 1: D-SUB socket strip (1x 50-position); connection 2: D-SUB socket strip (1x 50-position); cable length: 3 m
Liên hệ:
Key Commercial Data
| Orderkey | 1066674 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 573 (C-5-2019) |
| GTIN | 4055626734408 |
| Custom tariff number | 85444290 |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 70 °C (fixed installation) |
|---|---|
| -10 °C … 70 °C (flexible installation) | |
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Maximum altitude | ≤ 2000 m |
| Degree of protection | IP20 |
| ≥ IP54 (Installation location) |
General
| Max. permissible operating voltage | 25 V AC |
|---|---|
| 60 V DC | |
| Max. current carrying capacity per path | 2 A (50 °C) |
| 1 A (70°C) | |
| Length of cable | 3 m |
| External cable diameter | 12.8 mm ±0.5 mm |
| Single wire, cross section | 0.25 mm² |
| Single wire, cross section [AWG] | 24 |
| Single wire, number of litz wires | 14 |
| Single wire, material | Cu uninsulated |
| Wire diameter incl. insulation | 1.2 mm ±0.05 mm |
| Smallest bending radius, fixed installation | 107 mm |
| Smallest bending radius, movable installation | 200 mm |
| Bending cycles | 5000 (at a radius of ≥ 15x outside diameter) |
| Shielding | yes |
| Tinned copper braided shield | |
| Cable insulation resistance | ≥ 20 MΩ/km (at 20 °C) |
| Cable resistance | ≤ 80 Ω/km (at 20 °C) |
| Outer sheath, material | Halogen-free sheath |
| External sheath, color | gray |
| Nominal operating mode | 100% operating factor |
Connection data
| Connection name | Field level |
|---|---|
| Connection method | D-SUB socket strip |
| Screw thread | UNC 4-40 |
| Number of connections | 1 |
| Number of positions | 50 |
| Torque | 0.2 Nm |
| Insertion/withdrawal cycles | > 200 |
Connection data 2
| Connection name | Controller level |
|---|---|
| Connection method | D-SUB socket strip |
| Screw thread | UNC 4-40 |
| Number of connections | 1 |
| Number of positions | 50 |
| Torque | 0.2 Nm |
| Insertion/withdrawal cycles | > 200 |
Standards and Regulations
| Flame resistance | IEC 60332-1-2 |
|---|---|
| VDE 0842, Part 332-1-2 | |
| IEC 60332-3-22 | |
| Resistance to oil | against occasional splashes |
| Gasoline resistance | against occasional splashes |
| Designation | Air clearances and creepage distances |
| Standards/regulations | DIN EN 50178 |
| Rated insulation voltage | 125 V |
| Rated surge voltage | 1.2 kV |
| Insulation | Functional insulation |
| Pollution degree | 2 |
| Overvoltage category | II |
Color code
| Connector 1 = connector 2 (optional) = wire color | D-SUB50 (1) = D-SUB50 (1) = white |
|---|---|
| D-SUB50 (2) = D-SUB50 (2) = brown | |
| D-SUB50 (3) = D-SUB50 (3) = green | |
| D-SUB50 (4) = D-SUB50 (4) = yellow | |
| D-SUB50 (5) = D-SUB50 (5) = gray | |
| D-SUB50 (6) = D-SUB50 (6) = pink | |
| D-SUB50 (7) = D-SUB50 (7) = blue | |
| D-SUB50 (8) = D-SUB50 (8) = red | |
| D-SUB50 (9) = D-SUB50 (9) = black | |
| D-SUB50 (10) = D-SUB50 (10) = violet | |
| D-SUB50 (11) = D-SUB50 (11) = gray-pink | |
| D-SUB50 (12) = D-SUB50 (12) = red-blue | |
| D-SUB50 (13) = D-SUB50 (13) = white-green | |
| D-SUB50 (14) = D-SUB50 (14) = brown-green | |
| D-SUB50 (15) = D-SUB50 (15) = white-yellow | |
| D-SUB50 (16) = D-SUB50 (16) = yellow-brown | |
| D-SUB50 (17) = D-SUB50 (17) = white-gray | |
| D-SUB50 (18) = D-SUB50 (18) = gray-brown | |
| D-SUB50 (19) = D-SUB50 (19) = white-pink | |
| D-SUB50 (20) = D-SUB50 (20) = pink-brown | |
| D-SUB50 (21) = D-SUB50 (21) = white-blue | |
| D-SUB50 (22) = D-SUB50 (22) = brown-blue | |
| D-SUB50 (23) = D-SUB50 (23) = white-red | |
| D-SUB50 (24) = D-SUB50 (24) = brown-red | |
| D-SUB50 (25) = D-SUB50 (25) = white-black | |
| D-SUB50 (26) = D-SUB50 (26) = brown-black | |
| D-SUB50 (27) = D-SUB50 (27) = gray-green | |
| D-SUB50 (28) = D-SUB50 (28) = yellow-gray | |
| D-SUB50 (29) = D-SUB50 (29) = pink-green | |
| D-SUB50 (30) = D-SUB50 (30) = yellow-pink | |
| D-SUB50 (31) = D-SUB50 (31) = green-blue | |
| D-SUB50 (32) = D-SUB50 (32) = yellow-blue | |
| D-SUB50 (33) = D-SUB50 (33) = green-red | |
| D-SUB50 (34) = D-SUB50 (34) = yellow-red | |
| D-SUB50 (35) = D-SUB50 (35) = green-black | |
| D-SUB50 (36) = D-SUB50 (36) = yellow-black | |
| D-SUB50 (37) = D-SUB50 (37) = gray-blue | |
| D-SUB50 (38) = D-SUB50 (38) = pink-blue | |
| D-SUB50 (39) = D-SUB50 (39) = gray-red | |
| D-SUB50 (40) = D-SUB50 (40) = pink-red | |
| D-SUB50 (41) = D-SUB50 (41) = gray-black | |
| D-SUB50 (42) = D-SUB50 (42) = pink-black | |
| D-SUB50 (43) = D-SUB50 (43) = blue-black | |
| D-SUB50 (44) = D-SUB50 (44) = red-black | |
| D-SUB50 (45) = D-SUB50 (45) = white-brown-black | |
| D-SUB50 (46) = D-SUB50 (46) = yellow-green-black | |
| D-SUB50 (47) = D-SUB50 (47) = gray-pink-black | |
| D-SUB50 (48) = D-SUB50 (48) = blue-red-black | |
| D-SUB50 (49) = D-SUB50 (49) = white-green-black | |
| D-SUB50 (50) = D-SUB50 (50) = green-brown-black |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
[email protected]
| [email protected] 5.0 | 27242200 |
|---|---|
| [email protected] 5.1 | 27242200 |
| [email protected] 6.0 | 27249200 |
| [email protected] 7.0 | 27249205 |
| [email protected] 8.0 | 27249205 |
| [email protected] 9.0 | 27242220 |
General
| Max. permissible operating voltage | 25 V AC |
|---|---|
| 60 V DC | |
| Max. current carrying capacity per path | 2 A (50 °C) |
| 1 A (70°C) | |
| Length of cable | 3 m |
| External cable diameter | 12.8 mm ±0.5 mm |
| Single wire, cross section | 0.25 mm² |
| Single wire, cross section [AWG] | 24 |
| Single wire, number of litz wires | 14 |
| Single wire, material | Cu uninsulated |
| Wire diameter incl. insulation | 1.2 mm ±0.05 mm |
| Smallest bending radius, fixed installation | 107 mm |
| Smallest bending radius, movable installation | 200 mm |
| Bending cycles | 5000 (at a radius of ≥ 15x outside diameter) |
| Shielding | yes |
| Tinned copper braided shield | |
| Cable insulation resistance | ≥ 20 MΩ/km (at 20 °C) |
| Cable resistance | ≤ 80 Ω/km (at 20 °C) |
| Outer sheath, material | Halogen-free sheath |
| External sheath, color | gray |
| Nominal operating mode | 100% operating factor |
