Key Commercial Data
| Orderkey | 2908523 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 593 (C-5-2017) |
| GTIN | 4055626306612 |
| Weight per Piece (excluding packing) | 3,061.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
General
| Nominal voltage UN | 25 V AC |
|---|---|
| 60 V DC | |
| Max. current carrying capacity per path | 2 A |
| Max. conductor resistance | ≤ 0.09 Ω/m |
| Length of cable | 15 m |
| Single wire, cross section | 0.25 mm² |
| Single wire, cross section [AWG] | 24 |
| External diameter | 11.2 mm |
| Shielding | yes |
| Tinned copper braided shield | |
| Insertion/withdrawal cycles | > 200 |
Environmental conditions
| Ambient temperature (operation) | -20 °C … 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C … 70 °C |

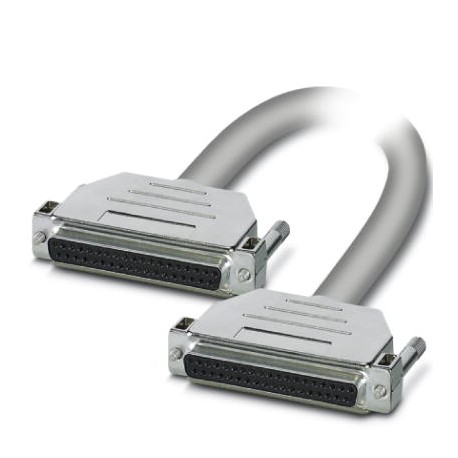

Connector 1
| Connection name | Field level |
|---|---|
| Connection method | D-SUB socket strip |
| Screw thread | UNC 4-40 |
| Torque | 0.2 Nm |
| Number of connections | 1 |
| Number of positions | 37 |
Connector 2
| Connection name | Controller level |
|---|---|
| Connection method | D-SUB socket strip |
| Screw thread | UNC 4-40 |
| Torque | 0.2 Nm |
| Number of connections | 1 |
| Number of positions | 37 |
