Key Commercial Data
| Orderkey | 2302133 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 592 (C-5-2017) |
| GTIN | 4017918893095 |
| Weight per Piece (excluding packing) | 230.000 g |
| Custom tariff number | 85444290 |
| Country of origin | HU (Hungary) |
General
| Nominal voltage UN | 25 V AC |
|---|---|
| 60 V DC | |
| Max. current carrying capacity per path | 2 A |
| Max. conductor resistance | ≤ 0.09 Ω/m |
| Length of cable | 1 m |
| Single wire, cross section | 0.25 mm² |
| Single wire, cross section [AWG] | 24 |
| External diameter | 10.5 mm |
| Shielding | yes |
| Tinned copper-braided shield, approx. 85% covering | |
| Insertion/withdrawal cycles | > 200 |
Environmental conditions
| Ambient temperature (operation) | -20 °C … 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C … 70 °C |
| Flame resistance | IEC 60332-1 |
| DIN VDE 0482 Part 332-1 |

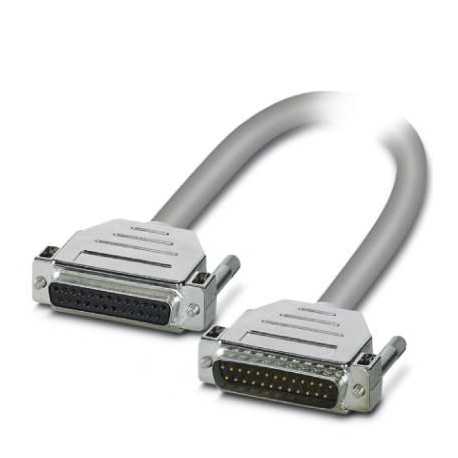

Connector 1
| Connection name | Field level |
|---|---|
| Connection method | D-SUB pin strip |
| Number of connections | 1 |
| Number of positions | 25 |
Connector 2
| Connection name | Controller level |
|---|---|
| Connection method | D-SUB socket strip |
| Number of connections | 1 |
| Number of positions | 25 |
Supported controller
| Controller | ABB S800 I/O |
|---|---|
| – suitable I/O card | DI810 |
| DI811 | |
| DI814 | |
| DI818 | |
| DI830 | |
| DI831 | |
| DI840 | |
| DI885 | |
| DO810 | |
| DO814 | |
| DO818 | |
| DO840 | |
| DP820 | |
| DP840 | |
| AI810 | |
| AI820 | |
| AI830 | |
| AI835 | |
| AI845 | |
| AO810 | |
| AO820 |
