Key Commercial Data
| Orderkey | 2880561 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 180 (C-4-2017) |
| GTIN | 4046356048941 |
| Weight per Piece (excluding packing) | 228.240 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C … 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Altitude | ≤ 4000 m (amsl (above mean sea level)) |
| Degree of protection | IP40 |
General
| Housing material | Zinc die-cast |
|---|---|
| Color | silver |
| Standards for cearances and creepage distances | IEC 60664-1 |
| DIN VDE 0110-1 | |
| Overvoltage category | II |
| Degree of pollution | 2 |
| Mounting type | Screw mounting |

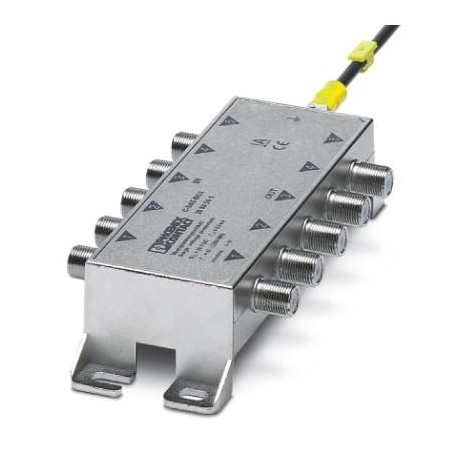

| Type | Housing for surface mounting |
| Number of positions | 5 |
| Direction of action | Line-Shield/Earth Ground |
Protective circuit
| IEC test classification | B2 |
|---|---|
| C1 | |
| C2 | |
| C3 | |
| D1 | |
| Nominal voltage UN | 14 V DC (vertical) |
| 18 V DC (horizontal) | |
| Maximum continuous voltage UC | 20 V DC |
| Rated current | 400 mA |
| Operating effective current ICat UC | ≤ 2 µA (per channel) |
| Residual current IPE | ≤ 2 µA (per channel) |
| Nominal discharge current In(8/20) µs (line-shield) | 2.5 kA |
| Total discharge current Itotal(8/20) µs | 10 kA |
| Max. discharge current Imax(8/20) µs maximum (line-shield) | 2.5 kA |
| Nominal pulse current Ian (10/1000) µs (Core-Shield) | 100 A |
| Nominal pulse current Ian (10/700) µs (Core-Shield) | 100 A |
| Output voltage limitation at 1 kV/µs (line-shield) static | ≤ 80 V |
| Voltage protection level Up(line-shield) | ≤ 500 V (C2 – 4 kV / 2 kA) |
| ≤ 120 V (C3 – 100 A) | |
| Response time tA (line-shield) | ≤ 1 ns |
| Input attenuation aE, asym. | ≤ 1 dB (5 MHz … 2,2 GHz / 75 Ω) |
| ≤ 3 dB (5 MHz … 2,4 GHz / 75 Ω) | |
| Near-end crosstalk attenuation | ≥ 40 dB (5 MHz … 2,4 GHz / 75 Ω) |
| Cut-off frequency fg (3 dB), asym. (shield) in 75 Ohm system | > 2.5 GHz |
| Frequency range | 47 MHz … 2.5 GHz |
| Inductivity in series | typ. 5 µH (f = 10 kHz) |
| Resistance in series | 3.3 Ω ±20 % |
| Surge protection fault message | none |
| Impulse durability (line-shield) | B2 – 4 kV/100 A |
| C1 – 1 kV/500 A | |
| C2 – 4 kV/2 kA | |
| C3 – 100 A | |
| D1 – 500 A | |
| Impulse durability (shield-earth) | C2 – 10 kA |
| D1 – 5 kA |
Connection data
| Connection method | F connector |
|---|---|
| Connection method IN | F connector, female |
| Connection method OUT | F connector, female |
