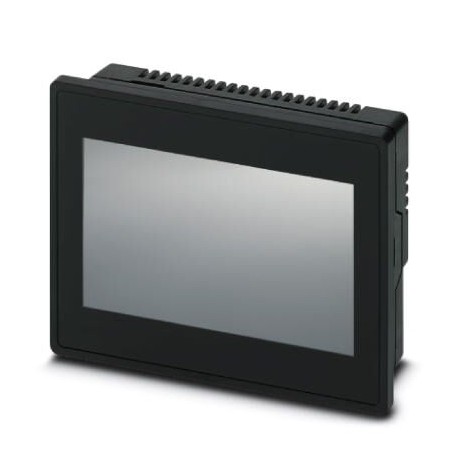

BTP 2043W 1050387 PHOENIX CONTACT Touch panel with 10,92 cm / 4,3″-TFT-display (analog resistive (polyester)..
BTP 2043W 1050387 PHOENIX CONTACT Touch panel with 10,92 cm / 4,3″-TFT-display (analog resistive (polyester)..
Touch panel with 10,92 cm / 4,3″-TFT-display (analog resistive (polyester)), 480 x 272 pixel(s) (WQVGA), 262144 colors, Arm9™ i.MX28, 454 MHz, 2x COM (RS-232/422/485), 1x USB 2.0, Typ A, 1x USB 2.0, Typ B, 1 x Ethernet (10/100 Mbps), RJ45, Windows
Liên hệ:
Key Commercial Data
| Orderkey | 1050387 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 471 (C-6-2019) |
| GTIN | 4055626666587 |
| Weight per Piece (excluding packing) | 320.000 g |
| Custom tariff number | 84714100 |
| Country of origin | IN (India) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Dimensions
| Outer dimensions: width, height, depth | 120 mm x 89 mm x 5 mm (Dimensions of the front plate) |
|---|---|
| Installation dimensions: width, height, depth | 111 mm x 80 mm x 31.5 mm (Installation cutout) |
Display
| Display | 10,92 cm / 4,3″-TFT |
|---|---|
| Screen resolution | 480 x 272 Pixel(s) (WQVGA) |
| Touch technology | analog resistive (polyester) |
| Brightness | 400 cd/m², typical (adjustable) |
| Backlighting | LED |
| Display backlight MTBF | 20000 h |
| Colors | 262144 colors |
| Reading angle left | 70 ° |
| Reading angle right | 70 ° |
| Reading angle top | 50 ° |
| Reading angle bottom | 70 ° |
Computer data
| Processor | Arm9™ i.MX28, 454 MHz |
|---|---|
| Operating system | Windows®CE 6.0 |
| User software | Visu+ |
| RAM | 128 MB DDR2 SDRAM |
| Mass storage | Flash, 512 MB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x COM (RS-232/422/485) |
| 1x USB 2.0, Typ A | |
| 1x USB 2.0, Typ B | |
| Bus system | without |
| Slots | 1x SD |
General
| Material front plate | Plastic |
|---|---|
| Housing material | Plastic |
| Mounting type | Front installation |
| Weight | 200 g |
Ambient conditions
| Degree of protection | IP66 (on the front), IP20 (on the back) |
|---|---|
| Ambient temperature (operation) | 0 °C … 50 °C |
| Ambient temperature (storage/transport) | -20 °C … 85 °C |
| Permissible humidity (operation) | 10 % … 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % … 95 % (non-condensing) |
| Vibration (operation) | DIN EN 60068-2-6 |
| Shock | DIN EN 60068-2-27 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
[email protected]
| [email protected] 4.0 | 27330200 |
|---|---|
| [email protected] 4.1 | 27330200 |
| [email protected] 5.0 | 27330200 |
| [email protected] 5.1 | 27330200 |
| [email protected] 6.0 | 27242300 |
| [email protected] 7.0 | 27242302 |
| [email protected] 8.0 | 27242302 |
| [email protected] 9.0 | 27330201 |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
