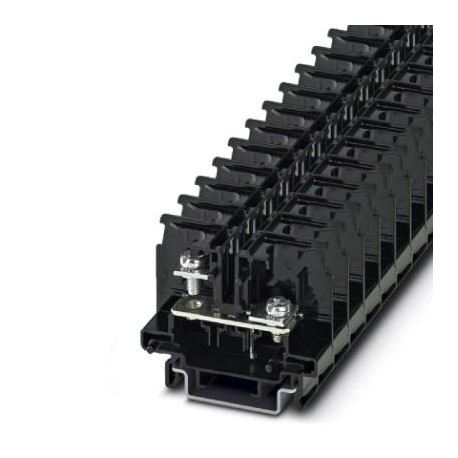

Key Commercial Data
| Orderkey | 3281142 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626406855 |
| Weight per Piece (excluding packing) | 14.650 g |
| Custom tariff number | 85369010 |
| Country of origin | IN (India) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 2 |
| Potentials | 1 |
| Nominal cross section | 6 mm² |
| Color | black |
| Insulating material | PC |
| Flammability rating according to UL 94 | V0 |
| Rated surge voltage | 8 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | IIIa |
| Maximum power dissipation for nominal condition | 1.02 W |
| Ambient temperature (operation) | -40 °C … 110 °C |
| Maximum load current | 41 A |
| Nominal current IN | 41 A |
| Nominal voltage UN | 690 V |
| Open side panel | Yes |
Dimensions
| Width | 11 mm |
|---|---|
| Length | 50.2 mm |
| Height | 39.9 mm |
| Height NS 35/7,5 | 41 mm |
| Height NS 35/15 | 48.5 mm |
| Pitch | 11 mm |
Connection data
| Connection method | Ring cable lug |
|---|---|
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 6 mm² |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 6 mm² |
| Min. AWG conductor cross section, flexible | 24 |
| Max. AWG conductor cross section, flexible | 10 |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.2 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 6 mm² |
| Cable lug connection according to standard | DIN 46234 |
| Min. cross section for cable lug connection | 0.14 mm² |
| Max. cross section for cable lug connection | 6 mm² |
| AWG min | 26 |
| AWG max | 10 |
| Hole diameter, min. | 4.3 mm |
| Cable lug width, max. | 9.8 mm |
| Bolt diameter | 4 mm |
| Screw thread | M4 |
| Tightening torque, min | 1.4 Nm |
| Tightening torque max | 2 Nm |
| Screw thread | M4 |
| Tightening torque, min | 1.4 Nm |
| Tightening torque max | 2 Nm |
Connection data (JIS standard)
| Connection method | Ring cable lug |
|---|---|
| Connection in acc. with standard | JIS 8207-7-1 |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 5.5 mm² |
| Cable lug connection according to standard | JIS 8207-7-1 |
| Min. cross section for cable lug connection | 0.5 mm² |
| Max. cross section for cable lug connection | 5.5 mm² |
| Hole diameter, min. | 4.3 mm |
| Cable lug width, max. | 9.8 mm |
| Bolt diameter | 4 mm |
| Screw thread | M4 |
| Tightening torque, min | 1.4 Nm |
| Tightening torque max | 2 Nm |
| Nominal current IN | 40 A |
| Maximum load current | 40 A |
| Nominal voltage UN | 600 V |
Standards and Regulations
| Connection in acc. with standard | IEC 60947-7-1 |
|---|---|
| Flammability rating according to UL 94 | V0 |
