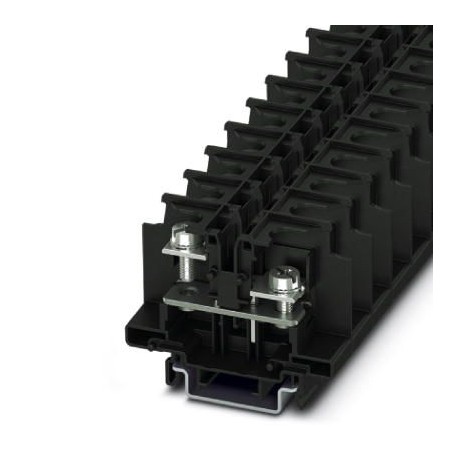

Key Commercial Data
| Orderkey | 3281185 |
|---|---|
| Packing unit | 25 pc |
| Minimum order quantity | 25 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626406923 |
| Weight per Piece (excluding packing) | 25.120 g |
| Custom tariff number | 85369010 |
| Country of origin | IN (India) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 2 |
| Potentials | 1 |
| Nominal cross section | 16 mm² |
| Color | black |
| Insulating material | PC |
| Flammability rating according to UL 94 | V0 |
| Rated surge voltage | 8 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | IIIa |
| Maximum power dissipation for nominal condition | 2.43 W |
| Ambient temperature (operation) | -40 °C … 110 °C |
| Maximum load current | 76 A |
| Nominal current IN | 76 A |
| Nominal voltage UN | 690 V |
| Open side panel | Yes |
| Shock protection test specification | IEC 60529:2001-02 |
| Back of the hand protection | guaranteed |
| Finger protection | guaranteed |
| Result of surge voltage test | Test passed |
| Surge voltage test setpoint | 9.8 kV |
| Result of power-frequency withstand voltage test | Test passed |
| Power frequency withstand voltage setpoint | 1.89 kV |
| Result of the test for mechanical stability of terminal points (5 x conductor connection) | Test passed |
| Result of tight fit on support | Test passed |
| Tight fit on carrier | NS 35 |
| Setpoint | 5 N |
| Result of voltage-drop test | Test passed |
| Requirements, voltage drop | ≤ 3.2 mV |
| Result of temperature-rise test | Test passed |
| Short circuit stability result | Test passed |
| Conductor cross section short circuit testing | 16 mm² |
| Short-time current | 1.92 kA |
| Result of thermal test | Test passed |
| Proof of thermal characteristics (needle flame) effective duration | 30 s |
Dimensions
| Width | 23.9 mm |
|---|---|
| Length | 59 mm |
| Height | 43.9 mm |
| Height NS 35/7,5 | 45.2 mm |
| Height NS 35/15 | 52.7 mm |
| Pitch | 15 mm |
Connection data
| Connection method | Ring cable lug |
|---|---|
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section solid min. | 0.5 mm² |
| Conductor cross section solid max. | 16 mm² |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 16 mm² |
| Min. AWG conductor cross section, flexible | 20 |
| Max. AWG conductor cross section, flexible | 6 |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 16 mm² |
| Cable lug connection according to standard | DIN 46234 |
| Min. cross section for cable lug connection | 0.5 mm² |
| Max. cross section for cable lug connection | 16 mm² |
| AWG min | 20 |
| AWG max | 6 |
| Hole diameter, min. | 5.1 mm |
| Cable lug width, max. | 12.7 mm |
| Bolt diameter | 5 mm |
| Screw thread | M5 |
| Tightening torque, min | 2.6 Nm |
| Tightening torque max | 3.7 Nm |
| Screw thread | M5 |
| Tightening torque, min | 2.6 Nm |
| Tightening torque max | 3.7 Nm |
Connection data (JIS standard)
| Connection method | Ring cable lug |
|---|---|
| Connection in acc. with standard | JIS 8207-7-1 |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 14 mm² |
| Cable lug connection according to standard | JIS 8207-7-1 |
| Min. cross section for cable lug connection | 0.5 mm² |
| Max. cross section for cable lug connection | 14 mm² |
| Hole diameter, min. | 5.1 mm |
| Cable lug width, max. | 12.7 mm |
| Bolt diameter | 5 mm |
| Screw thread | M5 |
| Tightening torque, min | 2.6 Nm |
| Tightening torque max | 3.7 Nm |
| Nominal current IN | 70 A |
| Maximum load current | 70 A |
| Nominal voltage UN | 600 V |
Standards and Regulations
| Connection in acc. with standard | IEC 60947-7-1 |
|---|---|
| Flammability rating according to UL 94 | V0 |
